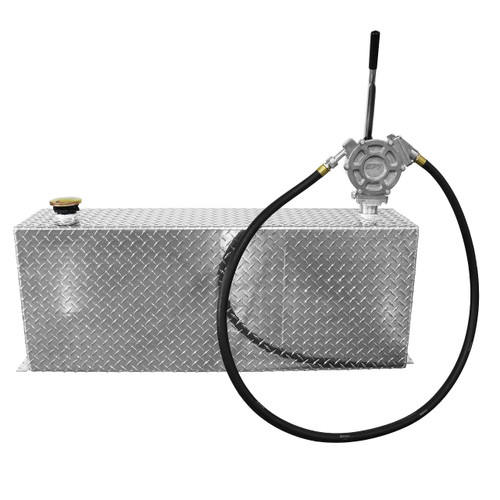

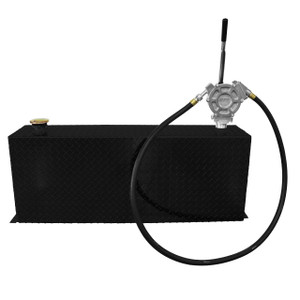

When it comes to top-quality refueling transfer tanks, trust in JME's expertise and excellence. Our 38 Gallon Fuel Transfer Tank is DOT approved and backed by a Special Permit from the U.S. Department of Transportation, ensuring legal manufacture, marking, and selling of these high-quality aluminum refueling transfer tanks. Whether you're in commercial, state, or private applications, these tanks are built to withstand the toughest conditions and offer peace of mind with their superior construction.
Note: DOT Certified for Gasoline, Diesel, Methanol, Kerosene, Aviation fuel and other liquids
The GPI HP-100 DUAL-FLO® Petroleum Hand Pump is a versatile and reliable manual pump designed for handling a variety of petroleum products. Whether you need fast high-capacity flow or easier fluid pumping, this pump offers two convenient flowrate settings. It is compatible with aluminum and nitrile materials, making it suitable for a wide range of applications. This hand pump is designed for use on tanks with a 2-inch bung and is constructed for durability and longevity.
Features
Tank Features
- Multi-Fuel Compatibility: This tank is suitable for a wide range of fuels, including gas, diesel, methanol, kerosene, and aviation fuel.
- Lockable Vent/Prevent Filler Cap: Equipped with a commercial-grade lockable vent/prevent filler cap, providing security.
- Fully Baffled Design: Features a fully baffled interior to reduce the movement of contents during transportation, ensuring stability.
- Reinforced Bungs: Two 2 in. NPT reinforced bungs, providing superior strength and compatibility with various fueling systems.
- Drain Port: Includes a 3/8 in. NPT drain for easy and convenient tank drainage when needed.
- Hold Down Brackets: Designed with hold-down brackets for secure mounting and stability during transport.
- Pressure Leak Detection Test: Prior to shipment, each tank undergoes a pressure leak detection test to ensure it is free from defects.
- Clean and Debris-Free: Our tanks are cleaned both inside and outside, ensuring they are free from debris and contaminants.
- 1-Year Limited Warranty: For added peace of mind, the manufacturer provides a 1-year limited warranty on this fuel transfer tank.
- DOT Certified Special Permit Issued: Our 38 Gallon Fuel Transfer Tank comes with a Special Permit issued by the U.S. Department of Transportation (DOT), ensuring its safety and compliance with regulations.
Pump Features
- Two Flowrate Settings: Choose between 1/2-gallon setting for high-capacity flow or 1/4-gallon setting for easier pumping of fluids.
- Compatibility: Designed to handle petroleum products compatible with aluminum and Buna-N materials.
- Durable Construction: Lightweight, die-cast aluminum housing, stainless steel piston shaft and liner, and Buna-N seals.
- Built-in Air Valve: Prevents leakage at the nozzle for efficient operation.
- Easy Installation: Follow the provided instructions for quick and hassle-free installation on tanks with a 2-inch bung.
- Maintenance-Friendly: Designed for ease of maintenance with illustrated parts list and troubleshooting guide.
- Warranty: Comes with a 2-year warranty from the date of purchase, providing peace of mind.
- Wide Compatibility: Suitable for use with diesel fuel (including biodiesel blends B20), gasoline (including alcohol blends E15), hydraulic fluid, kerosene, and oil (up to 30 wt.).
Specifications
Tank Specifications
- Capacity: 38 Gallons
- Material: Aluminum
- Cap Type: Vent/Prevent Filler Cap
- Bungs: Two 2 in. NPT Reinforced Bungs
- Drain Port: 3/8 in. NPT
- Dimensions: 19 in. x 48 1/2 in. x 11 in.
Note 1: Mounting tabs extend out 1-1/2 in.
Note 2: Add 2-1/2 in. for cap height
Pump Specifications
- Construction: Lightweight die-cast aluminum housing, stainless steel piston shaft and liner, Nitrile seals.
- Pumping Capacity: 1/2 gallon per stroke cycle
- Flow Settings: 1/2-gallon - 1/4-gallon
- Inlet: 1 in. NPT
- Voltage: 12V DC
- Flow Rate: 20 GPM (76 L/min)
- Outlet: 3/4 in. NPT
- Suction Pipe: Adjustable plastic, 22 to 40 in.
Applications: Standard use with Mobile Tanks, Small Tractors & Equipment, Pick-up Trucks, ATVs, Snowmobiles, Racing/Automotive, Electrical/Plumbing Contractors & More
Notes:
- Mounting tabs extend out 1-1/2 in.
- Add 2-1/2 in. for cap height
- Pumps with aluminum threads must be coated with Anti-Seize prior to installation. Do not dry fit. Do not use teflon tape or pipe dope.
- Do not install a pump over 30 lbs. to a standard duty tank. For pumps over 30 lbs., a Severe Series tank must be used.
- This tank must be grounded to your vehicle. Metal to metal contact between mounting hardware and truck bed or running a ground wire to one of the mounting bolts.
* The 30 lb. limit includes pump and any other accessories such as filter kit, meters, etc. Failure to follow these guidelines will result in voiding your warranty. Do not install riser between the fuel tank fitting and the pump.
Contents
- ATTTR38: 38gal RECT REFUEL TRANS TANK
- GPI11400010: DUAL FLO HND PUMP W/HOSE & NZL
- ELL234192: LOCTITE ANTI-SEIZE 1oz TUBE
