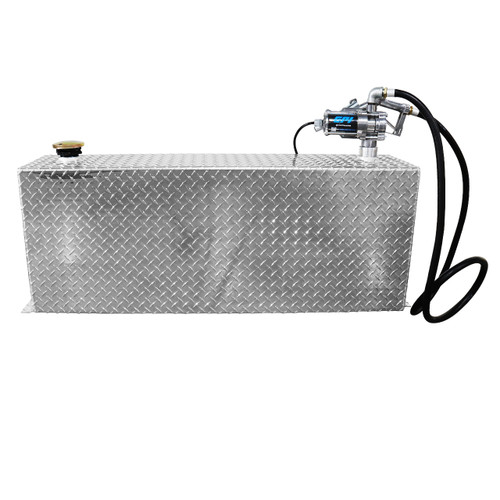

When it comes to top-quality refueling transfer tanks, trust in JME's expertise and excellence. Our 38 Gallon Fuel Transfer Tank is DOT approved and backed by a Special Permit from the U.S. Department of Transportation, ensuring legal manufacture, marking, and selling of these high-quality aluminum refueling transfer tanks. Whether you're in commercial, state, or private applications, these tanks are built to withstand the toughest conditions and offer peace of mind with their superior construction.
Note: DOT Certified for Gasoline, Diesel, Methanol, Kerosene, Aviation fuel and other liquids
The GPI EZ-8 Fuel Pump is your trusted companion for efficient and safe fuel transfer. This 12-volt electric gear pump, equipped with a manual nozzle, ensures smooth operation when handling gasoline (including up to 15% alcohol blends like E15), diesel fuel (up to 20% biodiesel blends like B20), and kerosene. It's designed for permanent mounting on vented storage tanks and is perfect for various applications.
Features
Tank Features
- Multi-Fuel Compatibility: This tank is suitable for a wide range of fuels, including gas, diesel, methanol, kerosene, and aviation fuel.
- Lockable Vent/Prevent Filler Cap: Equipped with a commercial-grade lockable vent/prevent filler cap, providing security.
- Fully Baffled Design: Features a fully baffled interior to reduce the movement of contents during transportation, ensuring stability.
- Reinforced Bungs: Two 2 in. NPT reinforced bungs, providing superior strength and compatibility with various fueling systems.
- Drain Port: Includes a 3/8 in. NPT drain for easy and convenient tank drainage when needed.
- Hold Down Brackets: Designed with hold-down brackets for secure mounting and stability during transport.
- Pressure Leak Detection Test: Prior to shipment, each tank undergoes a pressure leak detection test to ensure it is free from defects.
- Clean and Debris-Free: Our tanks are cleaned both inside and outside, ensuring they are free from debris and contaminants.
- 1-Year Limited Warranty: For added peace of mind, the manufacturer provides a 1-year limited warranty on this fuel transfer tank.
- DOT Certified Special Permit Issued: Our 38 Gallon Fuel Transfer Tank comes with a Special Permit issued by the U.S. Department of Transportation (DOT), ensuring its safety and compliance with regulations.
Pump Features
- Durable & Portable: Crafted from lightweight corrosion-resistant aluminum for durability and portability.
- Impressive Flow: Offers a max flow rate of 8 GPM for quick fuel transfer, suitable for various applications.
- Smart Duty Cycle: Operates on a 15-min ON, 30-min OFF cycle, ensuring safe and efficient performance.
- Manual Nozzle: Features a manual nozzle with a 5.5 ft suction lift for precise fuel dispensing.
- Fuel Versatility: Compatible with gasoline (up to E15), diesel (up to B20 biodiesel blends), and kerosene.
- Wide Temp Range: Works reliably in temperatures from -20°F to +125°F (-29°C to +52°C).
- 12V DC Ready: Designed for seamless 12V DC automotive system integration.
- Easy Setup: Comes with essential accessories for straightforward installation.
- Safety Assurance: Includes grounding for electrical safety and efficient self-priming.
Specifications
Tank Specifications
- Capacity: 38 Gallons
- Material: Aluminum
- Cap Type: Vent/Prevent Filler Cap
- Bungs: Two 2 in. NPT Reinforced Bungs
- Drain Port: 3/8 in. NPT
- Dimensions: 19 in. x 48 1/2 in. x 11 in.
Note 1: Mounting tabs extend out 1-1/2 in.
Note 2: Add 2-1/2 in. for cap height
Pump Specifications
- Inlet/Outlet: 3/4 in. NPT
- Mounting: 2 in. NPT
- Flow Rate: 8 GPM (30 LPM)
- Duty Cycle: 15 min. ON, 30 min. OFF
- Operating Pressure: 15 PSI (1.03 bar) - Normal Pressure
- Operating Temperature: -20°F to 125°F (-29°C to 52°C)
- Pump Housing: Corrosion Resistant Diecast Aluminum
- Power Cord: 15 ft. (4.6 m), 14/2 AWG
- Voltage: 12V DC
- Type: Rotary Gear
- Current Draw: 11 Amp
- Motor: 2100 RPM, 1/10 HP, UL Listed to US and Canadian Standards
- Dispensing Hose: 5/8 in. x 10 ft.
- Suction Pipe: 15 to 40 in. (38.1 to 101.6 cm)
- Warranty: 2 Year
Applications: Standard use with Mobile Tanks, Small Tractors & Equipment, Pick-up Trucks, ATVs, Snowmobiles, Racing/Automotive, Electrical/Plumbing Contractors & More
Notes:
- Mounting tabs extend out 1-1/2 in.
- Add 2-1/2 in. for cap height
- Pumps with aluminum threads must be coated with Anti-Seize prior to installation. Do not dry fit. Do not use teflon tape or pipe dope.
- Do not install a pump over 30 lbs. to a standard duty tank. For pumps over 30 lbs., a Severe Series tank must be used.
- This tank must be grounded to your vehicle. Metal to metal contact between mounting hardware and truck bed or running a ground wire to one of the mounting bolts.
* The 30 lb. limit includes pump and any other accessories such as filter kit, meters, etc. Failure to follow these guidelines will result in voiding your warranty. Do not install riser between the fuel tank fitting and the pump.
Contents
- ATTTR38: 38gal RECT REFUEL TRANS TANK
- GPI13710001: EZ-8 PUMP W/MANUAL NOZZLE
- ELL234192: LOCTITE ANTI-SEIZE 1oz TUBE
