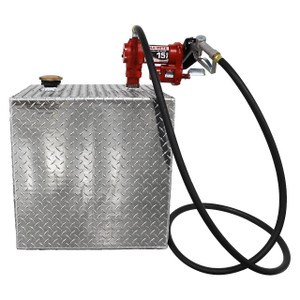

55 Gallon Aluminum Square Fuel Transfer Tank w/ GPI 15 GPM Pump (12V DC)

SKU:
ATTTR55M150SEM
Manufacturer:
JME Tanks
Size:
55 Gallon
Flow-Rate:
15 GPM
Voltage:
12V DC
Material:
Aluminum
Product Type:
Rectangular with Pump
Product Type:
Square with Pump
Weight:
130.00 LBS
$1,032.70
Adding to cart… The item has been added

When it comes to top-quality refueling transfer tanks, trust in JME's expertise and excellence. Our 55 Gallon Square Fuel Transfer Tank is DOT approved and backed by a Special Permit from the U.S. Department of Transportation, ensuring legal manufacture, marking, and selling of these high-quality aluminum refueling transfer tanks. Whether you're in commercial, state, or private applications, these tanks are built to withstand the toughest conditions and offer peace of mind with their superior construction.

Note: DOT Certified for Gasoline, Diesel, Methanol, Kerosene, Aviation fuel and other liquids

The GPI M-150 Series Fuel Transfer Pump is a top-selling retail fuel transfer solution known for its exceptional performance and extended lifespan. With the capability to deliver flow rates of up to 15 gallons per minute (57 liters per minute), this versatile pump is the preferred choice for a wide range of applications, including agriculture, automotive, and construction. It efficiently dispenses gasoline (up to E15), diesel fuel (up to B20), and kerosene. Whether you're fueling up your vehicles or equipment, this pump ensures reliable operation with minimal downtime.

Features

Tank Features

  • Multi-Fuel Compatibility: This tank is suitable for a wide range of fuels, including gas, diesel, methanol, kerosene, and aviation fuel.
  • Lockable Vent/Prevent Filler Cap: Equipped with a commercial-grade lockable vent/prevent filler cap, providing security.
  • Fully Baffled Design: Features a fully baffled interior to reduce the movement of contents during transportation, ensuring stability.
  • Reinforced Bungs: Two 2 in. NPT reinforced bungs, providing superior strength and compatibility with various fueling systems.
  • Drain Port: Includes a 3/8 in. NPT drain for easy and convenient tank drainage when needed.
  • Hold Down Brackets: Designed with hold-down brackets for secure mounting and stability during transport.
  • Pressure Leak Detection Test: Prior to shipment, each tank undergoes a pressure leak detection test to ensure it is free from defects.
  • Clean and Debris-Free: Our tanks are cleaned both inside and outside, ensuring they are free from debris and contaminants.
  • 1-Year Limited Warranty: For added peace of mind, the manufacturer provides a 1-year limited warranty on this fuel transfer tank.
  • DOT Certified Special Permit Issued: Our 55 Gallon Fuel Transfer Tank comes with a Special Permit issued by the U.S. Department of Transportation (DOT), ensuring its safety and compliance with regulations.

Pump Features

  • Durable Aluminum Housing: High-quality diecast aluminum construction with a powder-coated finish for corrosion resistance.
  • Efficient Rotary Gear Design: Fewer moving parts reduce friction and wear, ensuring long-lasting performance.
  • 2-Year Warranty: Backed by a 2-year warranty, UL Listed Motor, and CSA Certified for peace of mind.
  • Easy Installation: The 12-VDC motor and innovative spin collar design make installation quick and hassle-free.
  • Security Features: Includes a lockable nozzle holder to protect your investment.
  • Easy Maintenance: Quick access to strainer and poppet for maintenance.
  • Permanent Mounting: Designed for secure permanent mounting on vented storage tanks.
  • Convenience: Comes with a factory-installed power cord and a manual nozzle for ease of use.

Specifications

Tank Specifications

  • Capacity: 55 Gallons
  • Material: Aluminum
  • Cap Type: Vent/Prevent Filler Cap
  • Bungs: Two 2 in. NPT Reinforced Bungs
  • Drain Port: 3/8 in. NPT
  • Dimensions: 23 1/2 in. x 24 1/4 in. x 24 in.

Note 1: Mounting tabs extend out 1-1/2 in.
Note 2: Add 2-1/2 in. for cap height

Pump Specifications

  • Input: 12V (DC)
  • Fuse: 25 amps
  • Type: Rotary Gear
  • Motor RPMs: 1900
  • Motor HP: 1/5
  • Flow Rate: 15 GPM (57 L/min)
  • Duty Cycle: 30 min on/30 min off
  • Working Pressure: 15 PSI (1.03 bar)
  • Max Working Temperature: -20°F to 125°F (-29°C to 52°C)
  • Wetted Materials: Aluminum
  • Inlet: 1 in. NPT
  • Outlet: 3/4 in. NPT
  • Mounting Type: Spin Collar, 2 in. NPT
  • Suction Pipe: Polypropylene, Telescoping 15 to 40 in. x 1 in. NPT
  • Power Cord: 18 ft. (5.5m), 12/2 AWG, Factory Installed
  • Dispensing Hose: 12 ft. (3.7m) x 3/4 in. NPT
  • Nozzle: 3/4 in. NPT Inlet, Manual, Unleaded, Diesel
  • Housing: Powder Coated, Corrosion-Resistant Diecast Aluminum
  • Warranty: 2-yr pump warranty
  • Approvals: cULus Motor Listed for Hazardous Locations Class I, Division 2, Group D USA and Canada, CE compliant with EMC Directive 89/336/EEC requirements.

Applications: Standard use with Mobile Tanks, Small Tractors & Equipment, Pick-up Trucks, ATVs, Snowmobiles, Racing/Automotive, Electrical/Plumbing Contractors & More

Notes:

  • Mounting tabs extend out 1-1/2 in.
  • Add 2-1/2 in. for cap height
  • Pumps with aluminum threads must be coated with Anti-Seize prior to installation. Do not dry fit. Do not use teflon tape or pipe dope.
  • Do not install a pump over 30 lbs. to a standard duty tank. For pumps over 30 lbs., a Severe Series tank must be used.
  • This tank must be grounded to your vehicle. Metal to metal contact between mounting hardware and truck bed or running a ground wire to one of the mounting bolts.

* The 30 lb. limit includes pump and any other accessories such as filter kit, meters, etc. Failure to follow these guidelines will result in voiding your warranty. Do not install riser between the fuel tank fitting and the pump.

Contents

  • ATTTR110: 110gal RECT REFUEL TNK ADD CAP
  • GPI110000107: 12v DC ECONOMY GEAR PUMP AL
  • ELL234192: LOCTITE ANTI-SEIZE 1oz TUBE

Downloads

Installation Instructions (PDF Download)
