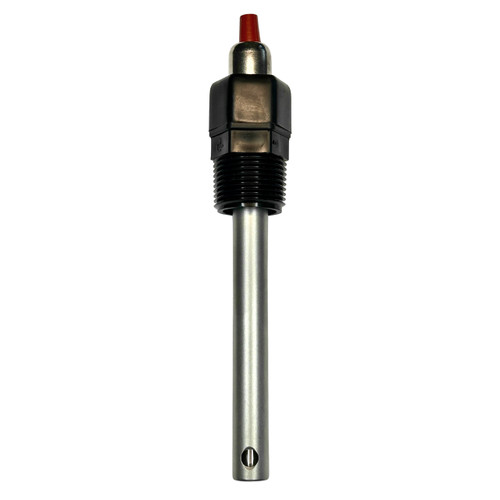

Engineered for efficiency and dependability, the ACS10 conductivity sensor boasts a compact design that effortlessly integrates into standard pipe fittings, even accommodating small line sizes such as 3/4? and 1 in.. This eliminates the need for costly specialized flow cells. The simplicity of its design plays a pivotal role in establishing a cost-effective pricing structure, making top-notch conductivity measurement accessible to a broader audience. Developed from durable 316 Stainless Steel and Teflon, the ACS10 is a testament to longevity and resilience. Its design incorporates dual O-ring seals strategically placed for unwavering dependability. Fearlessly braving harsh conditions, the front O-ring shields the rear O-ring, ensuring a steadfast seal. Adding to its precision, an integrated Pt1000 temperature element enables automatic compensation. Installation becomes easy with 5-foot standard leads featuring stripped and tinned ends with RoHS-compliant silver solder. Process connections are established through a 3/4 in. NPT polypro fitting, offering versatility for either secure screwing or connection to a standpipe for submersion applications. From routine use to challenging environments, the ACS10 excels, delivering accurate and reliable conductivity measurements. Place your confidence in the ACS10 for all your conductivity measurement requirements.
Features
- The small size allows convenient installation and cleaning.
- O-ring seal on all versions for increased dependability.
- Fittings allow for removal and replacement without specialty tools.
- Effortlessly integrates into standard pipe fittings
- Eliminates the need for costly specialized flow cells
- Incorporates dual O-ring seals strategically placed for unwavering dependability
- 5-foot standard leads featuring stripped and tinned ends with RoHS-compliant silver solder
- 3/4 in. NPT polypro fitting
Specifications
- Cell Constant: K=0.1
- Insulator: Teflon
- O-rings: EPDM FDA Approved
- Electrodes: 316 Stainless Steel
- Fittings: 3/4 in. NPT Polypropylene
- Electrical: 24 gauge stripped, tinned ends and 5' Belden 8724 Cable
- Temperature Element: Pt1000 is standard.
- Operating Temp Range: 0-100ºC
- Operating Pressure Range: 0-100 PSIG
- NPT: Male
- NPT Inches: 3/4 in.
- Material: Polypro
- Color: Black
- Measurement Range: Low to Medium Conductivity
- μS Range: 1 - 1,000μ S
- TDS Range: 0.64 - 640 ppm
- Accuracy: "Out of Box" ±5% ±1% Repeatability
- Length: 5.25 in. L Without Fitting, 3.50 in. Insertion Depth
