Cast bronze construction with Viton Seals®.
AMT Solids Handling End Suction Centrifugal pumps are designed for continuous-duty low pressure OEM, Industrial/Commercial and General Service applications including circulation, chemical processing, liquid transfer and cooling. Self-cleaning impellers to prevent clogging and handles soilds up to 1/8" in Diameter.
All pumps come with a NEMA 56J TEFC (totally enclosed fan cooled) Motor.
Features
- Cast Iron Construction with Stainless Steel Impeller
- 1/2 HP 230/460 3 PH Motor
- Mechanical Seal: Nitrile Rubber N
- 3/4 in. NPT Discharge Port Rotates in 90° Increments
- 1 in. NPT Suction Port
- Totally Enclosed Fan Cooled(TEFC) 56J Motors
- Delivers up to 49 GPM

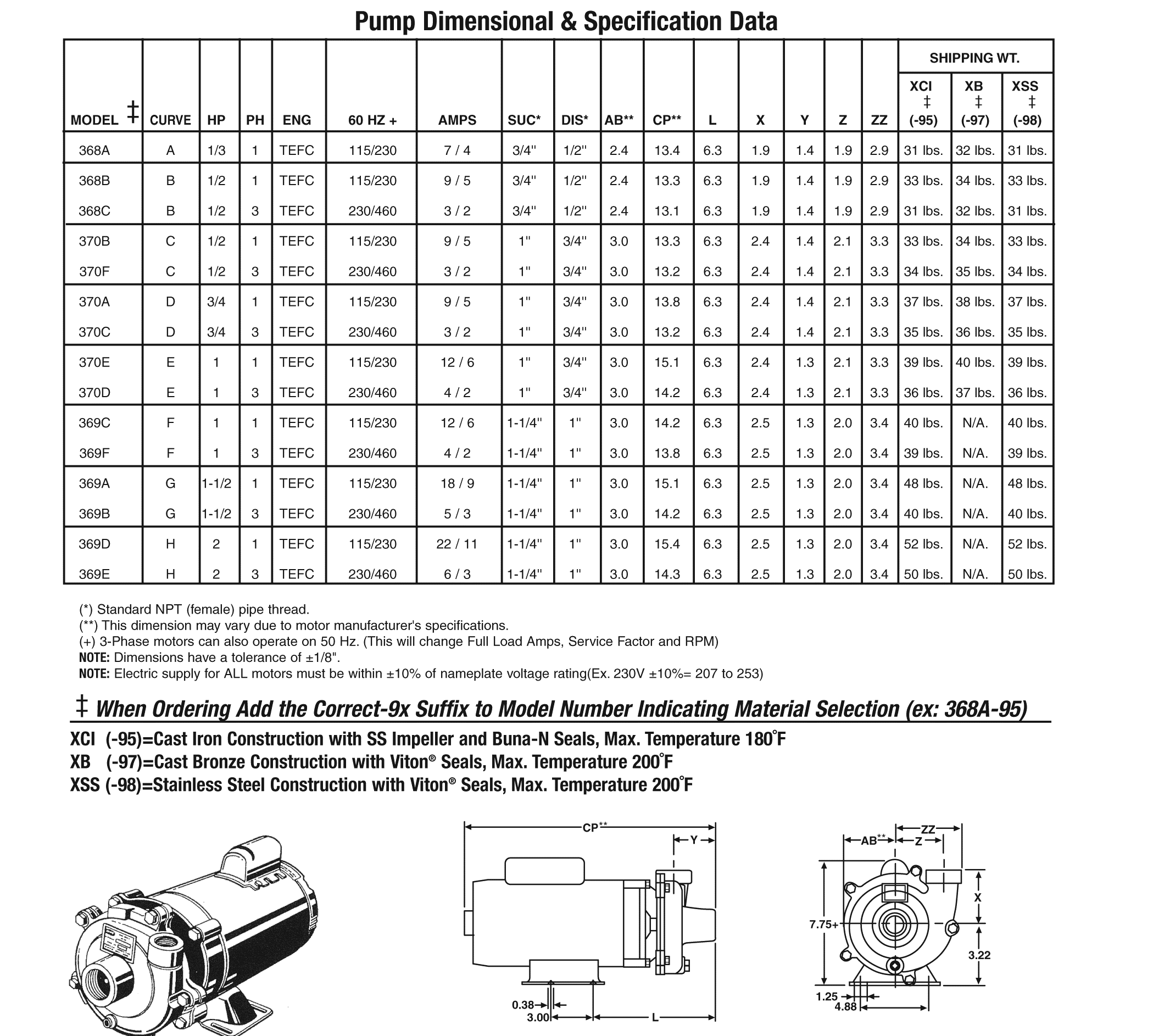

Specs & Dimensions
Performance Curves
