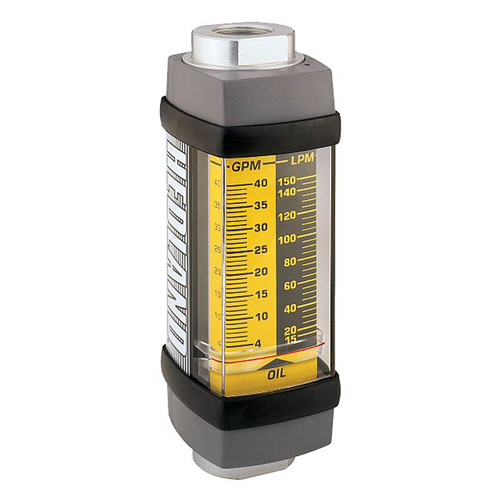

Badger Meter Hedland Variable Area Petroleum Flow Meter, Aluminum, 1/2 in. Female NPT

SKU:
Please choose an option below
Manufacturer:
Badger Meter
Material:
Aluminum
Size:
1/2 in. Female NPT
Pressure:
3500 PSI
Seals:
Viton
Description:
Petroleum Based Fluids
Weight:
4.00 LBS
$263.12
Adding to cart… The item has been added

The Hedland petroleum fluid meter is the most readable product in its class, with direct reading capabilities and an easy-to-read linear scale. Easy to mount in any position or orientation without affecting accuracy, this mechanical flowmeter has an innovative spring loaded variable area design that lets you mount unit in any position without affecting accuracy.

Features

  • For use in a wide range of industrial processes that require petroleum fluid monitoring.
  • Durable, aluminum construction provides an economical solution for monitoring noncorrosive petroleum-based or water-based fluids.
  • Magnetic coupling, eliminates the need for mechanical linkages.

Specifications

  • Variable area mechanical flow meter
  • 1/2 in. FNPT connection
  • For 1/2 in. pipe size
  • No flow straighteners or special piping required
  • For Petroleum fluids
  • -20°F to 240°F fluid temperature range
  • 3500 PSI max pressure
  • Relatively insensitive to shock and vibration
  • Aluminum housing and wetted parts
  • Viton seal
  • 500 SUS max viscosity
  • ±2% Full scale accuracy
  • Calibrated for 0.876 Specific gravity/li>
Part NumberFlow Range50% Pressure Drop100% Pressure Drop
H601A-001 0.1-1 GPM/3.5-3.75 LPM 2 PSI 2.75 PSI
H601A-002 0.2-2.0 GPM/1-7.5 LPM 2 PSI 3 PSI
H601A-005 0.5 - 5 GPM/2-19 LPM 3 PSI 6 PSI
H601A-015 1-15 GPM/ 4-56 LPM 6.5 PSI 18.5 LPM
