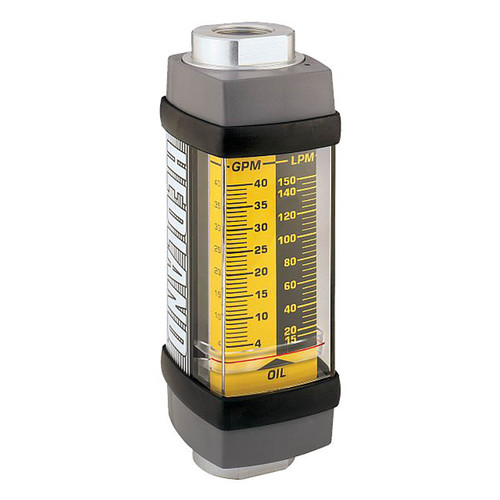

The Hedland petroleum fluid meter is the most readable product in its class, with direct reading capabilities and an easy-to-read linear scale. Easy to mount in any position or orientation without affecting accuracy, this mechanical flowmeter has an innovative spring loaded variable area design that lets you mount unit in any position without affecting accuracy.
Not intended for potable water applications (human consumption – drinking and cooking) and has not been designed to be compliant with the “Safe Drinking Water Act” requirements for low lead in potable water applications. This item is for use only in non-potable (non-human consumption) water applications.
Features
- For use in a wide range of industrial processes that require petroleum fluid monitoring.
- Durable, aluminum construction provides an economical solution for monitoring noncorrosive petroleum-based or water-based fluids.
- Magnetic coupling, eliminates the need for mechanical linkages.
Specifications
- Variable area mechanical flow meter
- 1/4 in. FNPT connection
- For 1/4 in. pipe size
- No flow straighteners or special piping required
- For Petroleum fluids
- -20°F to 240°F fluid temperature range
- 3500 PSI max pressure
- Relatively insensitive to shock and vibration
- Brass housing and wetted parts
- Viton seal
- 500 SUS max viscosity
- ±7% Full scale accuracy
- Calibrated for 0.876 Specific gravity
| Part Number | Flow Range | 50% Pressure Drop | 100% Pressure Drop |
|---|---|---|---|
| H201A-005 | 0.05-0.5 GPM/ 0.2-1.9 LPM | 3 PSI | 5 PSI |
| H201A-010 | 0.1-1.0 GPM/0.5-3.75 LPM | 4 PSI | 9 PSI |
| H201A-020 | 0.2-2.0 GPM/1-7.5 LPM | 6 PSI | 13 PSI |
