Balcrank 1131-069 Lynx 5:1 HD Portable Pump Package w/ 55 Gallon Cart

SKU:
BC1131069
Manufacturer:
Balcrank
Product Type:
Mobile Pump System
Flow-Rate:
10 GPM
Pump Ratio:
5:1
Weight:
450.00 LBS
$2,104.28
Adding to cart… The item has been added

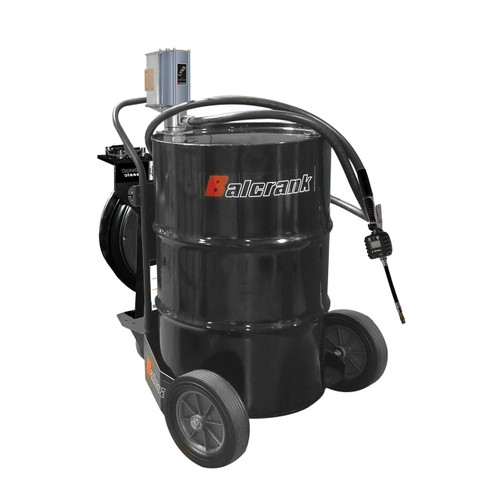

Balcrank 1131-069 Lynx 5:1 Portable pump package with a 55 Gallon Dolly engineered for outstanding performance and reliability to transfer fluid from pails, drums, tanks, and totes.

Note: Drum Not Included.

Features

  • Heavy duty air operated oil pump
  • Solid, all steel classic hose reel
  • Easy to use control valve that dispenses in liters, gallons, pints & quarts
  • Automatic draining Filter Regulator
  • Heavy duty drum cart

Specifications

Oil Pump
  • Ratio: 5:1
  • Style: Stub w/ Bung Adapter(fits 2″ Bungs)
  • Max Delivery: 10 GPM
  • Runs up to: 200 Ft.
  • Air Pressure: 60-145 PSI
  • Air Inlet: 1/4″ NPT (F)
  • Oil Inlet: 1″ NPT (F)
  • Oil Outlet: 3/4″ NPT (F)
Oil Hose Reel - Hose Included
  • Fluid inlet: 1/2 in. NPT (F) swivel
  • Fluid outlet: 1/2 in. NPT (F) swivel
  • Outlet thread: 1/2 in. NPT (M)
  • Wetted materials: Plated steel, brass and Nitrile Rubber
Digital Register Meter Control Handle
  • Electronic register module can be programmed to dispense in pints, quarts, liters, or gallons and will totalize in liters or gallons
  • Calibration factor and unit of measure are programmed during factory test. A 5-digit liquid crystal display, accurate to the third decimal place, shows the exact amount of fluid dispensed
  • When not in use for 30 seconds, the meter enters sleep mode, which prolongs battery life
  • When in sleep mode, the meter is turned on by a simple press of the ON/RESET button or if the meter detects fluid flow
  • Trigger allows for progressive opening of the valve for better control of oil delivery and incorporates a trigger lock to prevent accidental opening
  • Valve can also be locked in the open position by means of the trigger lock button
Oil Hose
  • Size: 1/2 in. ID
  • Length: 5 ft. (1.5 m.)
  • Fitting Type: 1/2" NPT

Package Contents

  • 5:1 3" Bare Stub Pump with Bung Adapter
  • Classic Medium Pressure Hose Real
  • Suction Tube 1” NPT(M) X 26” - 30°
  • Flex Memory Extension, 1/4 Turn Manual Nozzle for OIL
  • Mini Auto Drain Filter Regulator 1/4” NPT(F)
  • Nipple 1/4”
  • Medium Pressure Connectivity Hose  5’ X 1/2”
  • Heavy Duty Cart & Dolly Base
