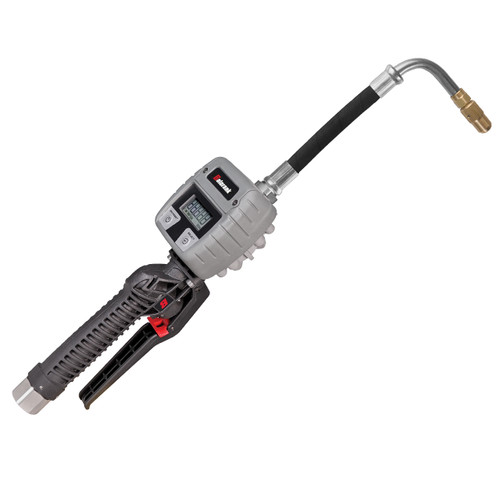

A delivery control handle with a polypropylene body and stainless steel valve mechanism.The control valve is designed to dispense a variety of low viscosity fluids and critical fluids that demand a high grade of chemical compatibility, among which are urea, windshield washer fluid, glycol, antifreeze, distilled water, brake fluid, etc. The control valve has a compensated valve that allows progressive actuation for better flow control. The valve can be locked in open position by means of the trigger cam. The gun includes protection to prevent accidental opening. Refer to the operation section for details of operation. All guns include 1/2” NPT threaded swivel, an extension outlet and a filter inside.
Features
- High chemical compatibility
- Easy flanged meter connection
- Improved ergonomic design
- Increased security
Specifications
- Maximum flow rate 7.9 gpm (30 l/min)
- Maximum working pressure 725 psi (50 bar)
- Operating temperature range 14 ºF to 122 ºF (-10ºC to 50ºC)
- Burst pressure 2175 psi (150 bar)
- Fluid inlet 1/2” NPT
- Fluid outlet 1/2” NPT flange with seal housing
- Wetted parts PP, Acetal, FPM, Stainless steel, PA
- Fluid compatibility Urea, Windshield washer fluid, Glycol, Antifreeze, Distilled water and Brake fluid
- Weight 0.63 lb (284 g)
