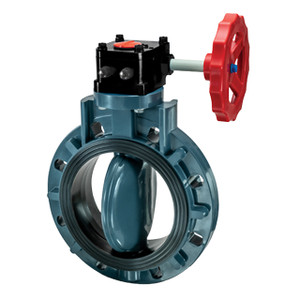

The Chemline Plastics Type 58 butterfly valves are designed for on/off and throttling control applications in heavy industries. Valve bodies are wafer style one-piece molded in Polypropylene (PP). The flow direction is bidirectional. Valve will seal closed with pressure on either side. A higher pressure/temperature safety factor is a bonus especially for hazardous services.
PP is used in a wide variety of applications from acids and alkali’s to organic solvents as well as pure water. It is one of the best materials to use for systems exposed to varying pH levels, as many plastics do not handle both acids and bases well.Note: See the Chemical Resistance Guide PDF to search chemical compatibility
Features
- Compact and light weight
- High corrosion resistance
- Solid plastic body & disc= no rust
- Disc seal design prevents wetting of shaft
- Full bolt hole circle makes installation and alignment easy
- No gaskets are necessary
Specifications
- Lever operated butterfly valve
- PP body
- PVC disc
- Temperature range: Up to 194°F (60°C)
- Stainless steel shaft
- FKM seat & O-rings
- Complies to ASTM D4101
