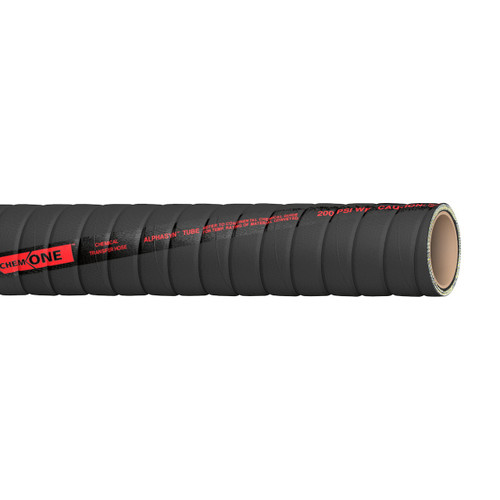

Continental ContiTech Chem One is a durable, lightweight and flexible transfer hose specifically designed to handle the majority of today's industrial chemicals at elevated temperatures. For use in pressure, gravity flow and/or suction service. See Chemical Resistance Guide linked in the "Downloads" tab for chemical compatibility.
Notes: Hose only (no ends). Hose is priced by the foot.
Features
- Tube compound is engineered to handle the majority of chemicals used in typical industrial applications
- Corrugated abrasion resistant cover
- Lighter and more flexible than the competition
- Easy to bend
Specifications
- ID: 3 in. (76.2 mm.)
- OD: 3.4 in. (89.2 mm.)
- Length: Per ft.
- Ends: None
- Tube: Alphasyn™ Modified Cross-Linked Polyethylene (Modified XLPE)
- Cover: Black Corrugated Abrasion-Resistant Omegasyn™ EPDM with Red Spiral Stripe
- Reinforcement: Spiral-Plied Synthetic Fabric with Double Wire Helix
- Bend Radius: 8 in. (203.2 mm.)
- Vacuum: 29 in. Hg (737 mm.)
- Maximum Working Pressure: 200 PSI (1.38 MPa)
- Hose Design Ratio (Burst Pressure): 4:1
- Temperature Range: -40°F to 250°F (-40°C to 121°C)
- Branding Example: CHEM-ONE™ Chemical Transfer Hose Alphasyn™ 200 PSI WP Continental ContiTech
- Color: Black with Red Stripe
- Weight: 1.59 lbs./ft. (2.37 kg./m.)
Downloads
Chemical Resistance Guide (PDF Download)
