Continental ContiTech's Infinity™ Chemical is constructed with the exclusive PVC double helix for superior flexibility, abrasion resistance and low coefficient of friction. Lightweight in construction, it is designed for handling the majority of common industrial chemicals under pressure, gravity flow, or medium suction service.
Temperature Range: -40°F to 160°F (-40°C to 71°C)

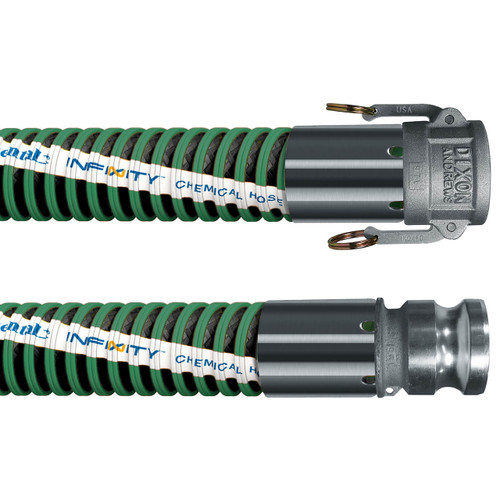

Note: Hose is assembled with stainless steel female coupler x male adapter ends (C x E) and comes with a banding coil and 2 stainless steel band clamps per end.
Specifications
- Series: Infinity™ Chemical
- ID: 3 in. (76.20 mm.)
- OD: 3.81 in. (96.70 mm.)
- Length: 10 - 20 ft. - Other Lengths Available - Please Call 1-800-333-3331 for More Information
- Ends: Stainless Steel Female Coupler x Male Adapter (C x E)
- Construction Tube: Conductive Pliosyn (UHMWPE)
- Cover: Chemivic Synthetic Rubber with Double Orange Pliovic Outer Helix (Anti-Static Wire is inside the Pliovic Helix)
- Reinforcement: Spiral-plied Synthetic Fabric
- Working Pressure: 150 PSI (1.03 Mpa)
- Bend Radius: 18 in. (457 mm.)
- Vacuum HG: 23 in. (584 mm.)
- Temperature Range: -40°F to 160°F (-40°C to 71°C)
- Color: Yellow/Orange Helix
- Weight: 1.73 lbs./ft. (2.56 kg./m.)
