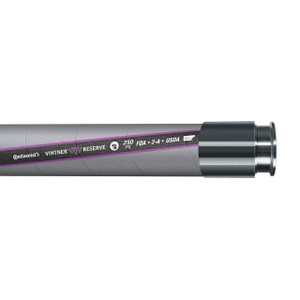

The Vintner™ Reserve is used for handling in-plant and/or tank truck transfer of wine, beer, potable water and other non-oily liquid foodstuffs. The monofilament helix is rust proof and is a crush-resistant alternative to traditional softwall or steel wire reinforced hoses. FDA/USDA-compliant and conforms to 3-A Sanitary Standard 18-03.
Service Temperature Range: -30°F up to +220°F (-34°C up to +104°C)
Note: Hose is priced by the foot.
Features
- Easy to clean
- Lightweight
- Tube won't discolor foods or beverages - will not impart taste or odor
- Crush and kink-resistant
- Cover leaves no stain on the floor when dragged
- FDA/USDA-compliant and conforms to 3-A Sanitary Standard 18-03
Specifications
- Series: Vintner™ Reserve
- ID: 1-1/2 in. (38.1 mm.)
- OD: 2.06 in. (52.34 mm.)
- Length: Per ft.
- Ends: None
- Tube: White Chlorobutyl Rubber (FDA/USDA Compliant and Conforms to 3-A Requirement Standards 18-03)
- Cover: Grey EPDM Synthetic Rubber (Wrapped)
- Reinforcement: Spiral-Plied Synthetic Fabric with Monofilament Helix
- Working Pressure: 250 PSI (1.72 Mpa)
- Bend Radius: 4 in. (102 mm.)
- Vacuum HG: 27 in. (686 mm.)
- Temperature Range: -30˚F to 220˚F (-34˚C to 104˚C)
- Branding: CONTINENTAL CONTITECH VINTNER RESERVE, 250 PSI, FDA, 3-A, & USDA
- Weight: 0.83 lb./ft. (1.24 kg./m.)
