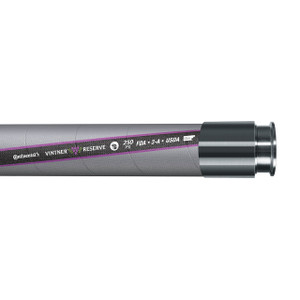

The Vintner™ Reserve is used for handling in-plant and/or tank truck transfer of wine, beer, potable water and other non-oily liquid foodstuffs. The monofilament helix is rust proof and is a crush-resistant alternative to traditional softwall or steel wire reinforced hoses. FDA/USDA-compliant and conforms to 3-A Sanitary Standard 18-03.
Service Temperature Range: -30°F up to +220°F (-34°C up to +104°C)
Note: Hose comes assembled with 316 stainless steel 3A tri-clamp ends and sanitary ferrules.
Features
- Easy to clean
- Lightweight
- Tube won't discolor foods or beverages - will not impart taste or odor
- Crush and kink-resistant
- Cover leaves no stain on the floor when dragged
- FDA/USDA-compliant and conforms to 3-A Sanitary Standard 18-03
- Assembled with 316 stainless steel 3A tri clamp ends
Specifications
- Series: Vintner™ Reserve
- ID: 2 in. (50.8 mm.)
- OD: 2.61 in. (66.25mm.)
- Length: 5 - 50 ft. - Please Call 1-800-333-3331 for Other Lengths Not Listed
- Ends: 3A Tri-Clamps
- Tube: White Chlorobutyl Rubber (FDA/USDA Compliant and Conforms to 3-A Requirement Standards 18-03)
- Cover: Grey EPDM Synthetic Rubber (Wrapped)
- Reinforcement: Spiral-Plied Synthetic Fabric with Monofilament Helix
- Working Pressure: 250 PSI (1.72 Mpa)
- Bend Radius: 7 in. (178 mm.)
- Vacuum HG: 27 in. (686 mm.)
- Temperature Range: -30ËšF to 220ËšF (-34ËšC to 104ËšC)
- Branding: CONTINENTAL CONTITECH VINTNER RESERVE, 250 PSI, FDA, 3-A, & USDA
- Weight: 1.18 lb./ft. (1.76 kg./m.)
