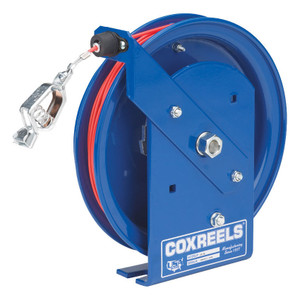

Coxreels SD Series "Static Discharge" cable reels are built heavy duty and designed for long lasting performance. They are specifically designed to be used in a combustible environments where the static buildup could ignite a spark and subsequent explosion. Static discharge or grounding reels are commonly paired with fuel hose reels.
Model #: SD-75
Features
- Includes cable, ball stop, and 50 Amp grounding clamp
- Available with 7 strand x 7 wire galvanized steel cable
- High visibility orange vinyl cable cover (O.D.=5/32" with cable cover)
- Compact static discharge cable reel available in spring rewind or direct hand crank retraction
- Commonly paired with fuel reels and used in combustible environment for grounding purposes
- Guide arm adjusts to wall, floor, vehicle, and overhead positions
- Bottom of base is un-powder coated to ground reel
- Enclosed factory tuned and matched cartridge-style spring motor
- Non corrosive stainless steel spring, pawl, and zinc plated ratchet
- Multi-position non-sparking lock ratchet mechanism secures cable at desired length
- Leading 2-year manufacturer's limited warranty
- Made in the USA - sold and supported worldwide
Dimensions
Applications
- Fuel/Service Trucks
- Fuel Storage & Dispensing Systems
- Ground Support
- Aviation Static Grounding
- Aviation Refueling
- Vehicle Refueling
- Marine/Ship Refueling/Offshore
- Oil Refinery
Downloads
Product Manual (PDF Download)
