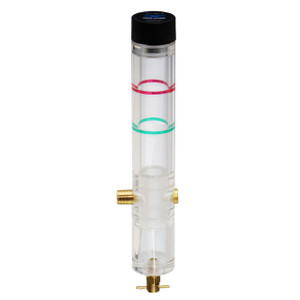

Des-Case Oil Level Indicator (OLI) is useful to maintenance professionals to gauge the oil level inside large tanks, gearboxes and reservoirs. The OLI is constructed of high performance clear polyamide with 1/2 in. threads at the each end of the column. Red and green level marker stickers are included to mark upper and lower limits or to designate running and idle oil level. Includes a drain port for operators to visually monitor the fluid level within reservoirs. Multiple lengths available; 6 in., 9 in., 12 in., and 15 in.
Note: D-2 Breather and fitting adapters sold separately. Call a JME Sales Specialist for Pricing: 800-333-3331
Features
- 360-degree view of oil clarity and level
- Easy to install
Applications
- Pumps
- Gearboxes
- Storage tanks
Specifications
- Oil level indicator
- Idle/ Maximum oil level marker
- Running/ minimum oil level marker
- Ends: 1/2 in. MNPT
- 7/8 in. ( 2.22 cm) diameter
- Maximum operating pressure: 65 PSI (4.48 bar)
- Temperature range: -40° F to 200° F (-40° C to 93° C)
- Chemical compatibility: All gear, mineral and synthetic oils
- Material: transparent Polyamide
Downloads
Specification Sheet (PDF Download)
