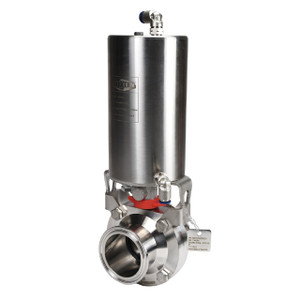

Dixon's B5107 Sanitary Butterfly Valves with clamp ends include food grade EPDM seats, polyacetal bushings and CF8M stainless steel bodies and discs that are polished to 3A standards. Shipped fully assembled, including pneumatic actuator and mounting bracket assembly. Not for use with bolted clamps.
Features
- 316L SS Construction
- Vertical Actuation
- EPDM Seal
- Clamp Connection
Specifications
- Series: B5107
- Model: B5107E075CCG
- Type: Pneumatic, Vertical Actuation
- Size: 3/4 in.
- Valve Stem Size: 10 mm.
- Connection: Clamp
- Material of Construction: Steel Components
- Product Contact Components (Body & Disc): Forged 316L
- Non-Product Contact Components : 304
- Seal Material for Product Contact Components: EPDM
- Non-Product Contact Components (Bushings): Polyacetal
- Flow Coefficient: 230 Cv - Based on Water at 68°F
- Valve Break Torque: 48 in.-lbs. - Based on Water at 68°F
- Maximum Product Line Pressure: 140 PSI
- Minimum Product Line Pressure: 0.4in Hg vacuum at 68°F
- Operating Temperature Range: 15 to 200°F (-9 to 93°C)
- Pneumatic Connections - Technical Data
- Threaded Air Fitting Size: G1/8 in.
- Air Connection Hose Size: 1/4 in. Flexible Poly Tubing
- Maximum Supply Air Pressure: 100 PSI (6.9 bar)
- Minimum Supply Air Pressure: 80 PSI (5.5 bar)
Product Notes
This Made-to-Order (MTO) item is non-returnable/non-refundable/non-cancellable unless there is a manufacturer defect or warranty issue.Downloads
Specification Sheet (PDF Download)
