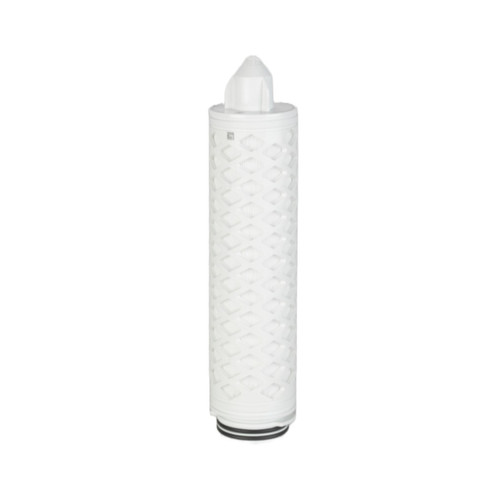

Donaldson 1C230221-02 Size 10/3 LifeTec PP100 N Polypropylene Filter Element - 2.4 Micron
Donaldson LifeTec PP100 N filters are absolute rated depth type filters constructed of 100 % Polypropylene. They contain a graded density Polypropylene microfiber filter medium that provides a tapered pore structure. LifeTec PP100 N filters deliver superior flow rates and high throughput, with absolute micron & submicron particulate retention and high dirt holding capacity. Their all-Polypropylene construction provides broad chemical compatibility and low extractable levels in a wide range of fluids and applications.
All components meet the EU and USA requirements for Food Contact Use in accordance with CFR (Code of Federal Regulations) Title 21 and EC/1935/2004 and subsequent amendments. The filter element is manufactured in accordance with the GMP requirements as defined in EC/2023/2006, has no migration of filter media, is non-fiber releasing and is thermally welded.
Applications: Food & beverage, Dairy, Chemical, Pharmaceutical
Features
- Extremely durable polypropylene construction
- Outstanding flow rate
- Extremely high dirt holding capacity
- Asymmetrical filter matrix for longer service life
- Approved for Food Contact Use according to CFR Title 21 & EC/1935/2004
Specifications
- Connection Type: Code 7 Connection
- Element Size: Size 10/3
- Media Type: Pleated Polypropylene
- Maximum Operating Temperature: 180 °F (82 °C)
- Efficiency Sterile: 2.4 micron
- Diameter: 2.76 in. (70 mm)
- Length: 12.40 in. (315 mm)
- Materials According to EC1935 2004: Yes
- Materials According to FDA CFR Title-21: Yes
- End Cap Material: Polypropylene
- Element O-Ring Material: EPDM
- Inner Core Material: Polypropylene
- Outer Core Material: Polypropylene
Downloads
Process Filtration Datasheet (PDF Download)
