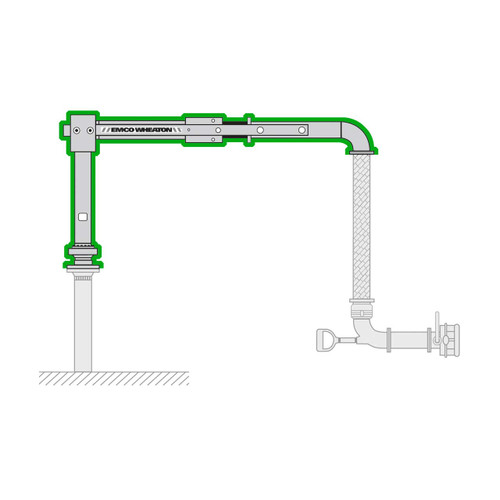

Emco Wheaton E2573 Counterweight Balance, 90 in. Length, 2 Counterweights

Emco Wheaton's Counterweight Balance for E2573 Bottom Hose Loading Arm.

Accessories are not included and must be ordered separately (i.e. hose, outboard swivels, spacer spools, API couplers, etc.).

• If Hose Dim. < (less than) 105 in., use 2 weights.
• If Hose Dim. > (greater than) 105 in., use 4 weights.
• Hose Dim. = Center of apex elbow to bottom TTMA flange.

Features

• Counterweight balance design is durable, cost effective and easy to adjust and operate
• Base swivel assembly features the incomparable Emco Wheaton D2000 series swivel joints with hardened ball bearing raceways, H-Block sealing system - isolating raceways from liquid contact - and easy infrequent service requirements that will reduce the lifecycle cost of the loading system
• Standard welding per ASME B31.3 specification and per Emco Wheaton welding specification ES-8
• Air test 5-80 psi, conforming to Emco Wheaton standard procedure
• Pressure drop and flow rate calculations available upon request
• Accessories are not included and must be ordered separately (i.e. hose, outboard swivels, spacer spools, API couplers, etc.)

Specifications

• Part: E2573-838
• Type: Counterweight Balance
• Dimension A: 90 in.
• Counterweights: 2 Weights
• Nominal Pipe Diameter: 4 in.
• Material: Carbon Steel Schedule 40 Material
• Paint: Du Pont Corlar 2.1 Standard Gray
• Seal Material: Viton

Dimensions

• If Hose Dim. < (less than) 105 in., use 2 weights.
• If Hose Dim. > (greater than) 105 in., use 4 weights.
• Hose Dim. = Center of apex elbow to bottom TTMA flange.

Downloads

Spec Sheet (PDF Download)
