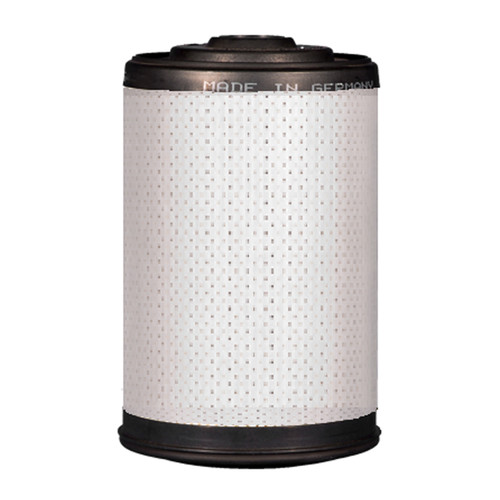

Faudi Aviation 6 in. EIMF-TYPE microfilter are used as a pre-filter for efficient and continuous removal of solids such as rust, sand and other particulates from aviation fuels. The microfilters are primarily used as a pre-filter to lengthen the service life of downstream coalescer elements in filter/water separators. They are highly efficient and cost effective due to a large filter surface area.
Features
- Qualification: EI 1590 3rd edition
- Nominal filtration according to EI 1590 3rd edition
- Flow Direction: Out-to-in
- Changeout differential pressure: 22 PSI (1.5 bar)
- Max. Pressure differential: 75 PSI ( 5.2 bar)
- Service time max.: 60 months
- Storage time max.: 60 months
Applications
- Refineries
- Terminals
- Airport depots
- Transfer Stations
- General aviation
- AVGAS
- Faudi aviation VFH-12
- Facet VF-22
- Parker Racor FBO-14
Specifications
- MICROFILTER EIMF 6.01C1-355-1
- Outside diameter: 6 in.
- Nominal length: 14 in.
- Flow Rate: 46 GPM
- Center tube: Epoxy coated steel
- Gaskets: Natural rubber ( Buna-N)
- End Cap: Polyamide, glass fiber reinforced/Epoxy coated steel
- Operating temperature: -22° F to 176°F (-30°C to 80°C)
- End cap label EI 1590 specification
