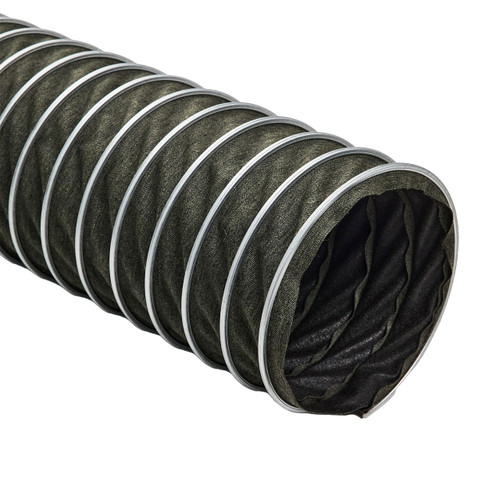

Flex-Lok 570 is a single-ply green Para-Aramid fabric hose mechanically crimped in a continuous process. Fabric is locked around a coated steel wire by a metal strip formed into a clip. Metal strip acts as a wearstrip and offers outstanding external abrasion resistance.
Temperature Range: -40°F to 570°F
Features
- Excellent compressibility, puncture resistance & tensile strength
- Excellent fatigue resistance & good flex characteristics
- Ideal for medium temperature, high flex fume venting applications
- Available with a non-marking thermoplastic rubber clip cover to protect the helix & the equipment that is attached to the hose
- Standard Min. Inside Diameter = 4"
- Standard Max. Inside Diameter = 12"
- Negative pressure fan system with ambient air inlet recommended to maximize effectiveness and life of duct
Specifications
| INSIDE | WEIGHT | BEND | COMPRESSION | NEGATIVE | WORKING | ||
| DIAMETER | LBS/FT | RADIUS | RATIO | PRESSURE | PRESSURE | ||
| IN | IN | IN/HG | PSI | ||||
| 4 | 0.71 | 3 | 6:1 | 11 | 12.5 | ||
| 5 | 0.69 | 3.5 | 8:1 | 9.5 | 9 | ||
| 6 | 0.84 | 4 | 8:1 | 7 | 8.2 | ||
| 7 | 0.97 | 4.5 | 8:1 | 6.5 | 7.4 | ||
| 8 | 1.1 | 5 | 8:1 | 6 | 7 | ||
| 9 | 1.26 | 5.5 | 8:1 | 4 | 6.6 | ||
| 10 | 1.4 | 6 | 8:1 | 5 | 6.3 | ||
| 12 | 1.5 | 8 | 8:1 | 2.8 | 5.1 | ||
