Flexaust Flexadux® PV (ADC) Series 25 ft. Duct Hose (20°F to 160°F)

SKU:
Please choose an option below
Manufacturer:
Flexaust
Length:
25 ft.
Weight:
16.00 LBS
$166.78 - $276.44
Adding to cart… The item has been added

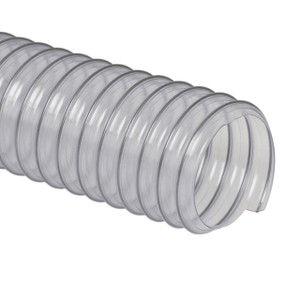

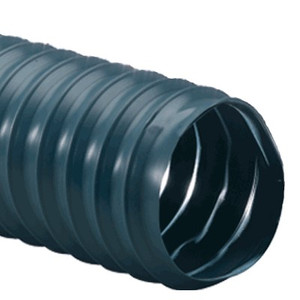

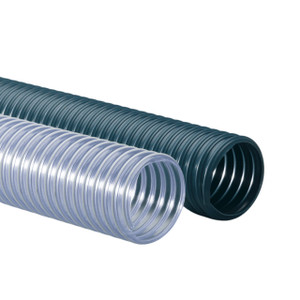

Very light weight PVC hose reinforced with a spring steel wire helix. ADC hoses have excellent flexibility with tight bending Characteristics.

  • Temperature Range: 20°F to 160°F

Features

  • Good for positive pressure applications
  • Great compressibility
  • Excellent felxibility with tight bending characteristics
  • Good chemical & moisture resistance
  • Manufactured with FDA acceptable materials
  • Wall Thickness = .015
  • Standard Color:  clear
  • Temperature Range: 20°F to 160°F

Specifications


  INSIDE WEIGHT BEND COMPRESSION NEGATIVE  WORKING
  DIAMETER LBS/FT RADIUS RATIO PRESSURE PRESSURE
  IN   IN   IN/HG PSI
  8 0.6 4.6 9:1 1.73 3.18
  10 0.75 5.7 9:1 0.89 2.55
  12 0.89 6.9 9:1 0.52 2.13
  14 1 8 9:1 0.33 1.83
  16 1.4 9 9:1 0.2 1.1
  18 1.25 10 9:1 0.16 1
