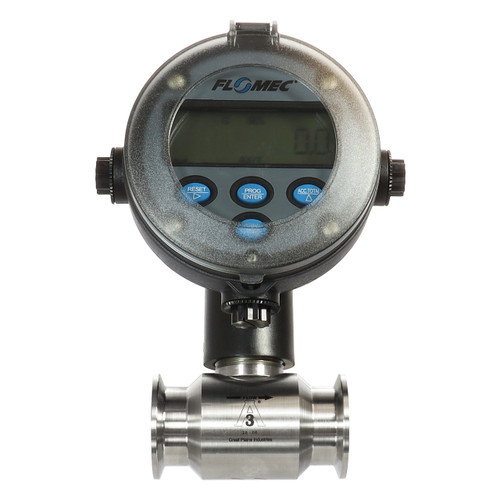

The Flomec GSCPS series 3A food and beverage high precision turbine meter is the most accurate of Flomec turbine meters. The GSCPS meter meets the strict 3A sanitary standards using a TPV program. The methods of design, construction and traceability of components have been reviewed and approved. the internals of the meter are machined and/or polished to meet 3A self draining and cleaning Ra 32 requirements.
The GSCPS meter has a fully programmable self-powered flow rate totalizer designed for computing and displaying flow rates and totals from flow meters with pulse frequency outputs. The instrument displays resettable batch total, accumulated total and instantaneous flow rates in engineering units is programmed by the user.
Features
- Turbine design that provides the best total operating cost
- Meets Clean in Place, Steam in Place and Clean Out of Place requirements for any sanitary procedure
- Multiple blind pulse out options available for connection to a variety of PLC, display equipment and process control equipment
- Battery, external DC or loop powered
- Easy to read backlit LCD display
- Robust IP66/67- NEMA 4x rated reinforced nylon enclosure with rubberized buttons
- Polycarbonate lens and protective cover
- 4-20mA analogue output according to flow rate
- Flow alarm for high , low or high/low
- Scaled pulse output according to accumulated total
- Non volatile memory, long battery life
- Wide temperature range of -100° F to 225°F (-74°C to 107°C) to accommodate various stages of food and beverage processes
- Capable of 285°F (140°C) temperature up to 1 hour for SIP sanitary procedures
Fluids
- Alcohols
- Beer
- De-Ionized water
- CIP solution
- Filtered wine
- Juice
- Light oils
- Milk
- Vinegar
- Water
Specifications
- Turbine meter
- Sanitary clamp fitting
- For 1 1/2 in. pipe size= 1 1/2 in. fitting
- Recommended strainer size: 18 mesh
- Frequency output: 100 to 1000 Hz
- Flow range: 17.7 to 177 GPM (67 to 670 LPM)
- Typical K-Factor: 340 PPG (90 pulses/L)
- Accuracy: ±0.5%
- Repeatability: ±0.1%
- Operating temperature: -100°F to 225°F (-74°C to 107°C)
- Housing, Shaft & rotor supports: 316 Stainless steel
- Rotor: CD4MCu Stainless steel
- Bushing & bearings: PEEK
- Retaining rings: 300 Series stainless steel
- 3A sanitary rating Number 28-04
- Meets approvals CIP, SIP & COP
- 2 year limited Warranty
