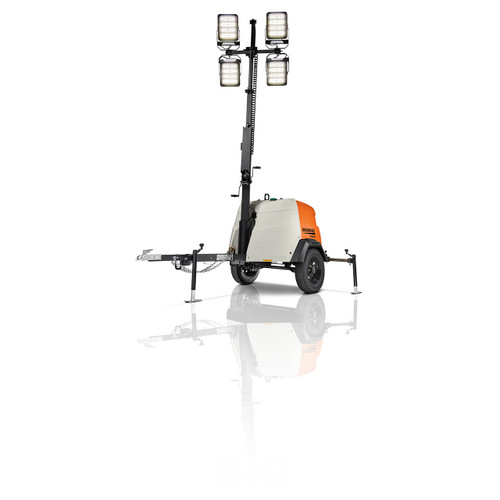

MLT6 series light towers from Generac Mobile provide versatile, low maintenance, reliable lighting in a compact footprint with simplified features and controls. All MLT6 LED light towers feature robust and powerful LED fixtures, designed to last the life of the tower. LED mobile light tower from Generac Mobile delivers reliable, cost-effective lighting and power for a wide variety of applications. Energy-efficient LED lights allow for an extended run-time of up to 203* hours. With lights running, the MLT6SMDS provides up to 5kW of export power. Durable LED lights illuminate instantly, and provide long-lasting, energy-efficient lighting. The standard Power Zone Auto light Controller allows for automated operation, including timed start/stop and dusk-to-dawn settings. Telemetry options enable remote monitoring and recovery assistance.
Features
- 25 Ft Vertical Mast
- Illuminated control panel with sealed switches
- Key Activated switch with 4 positions( OFF, RUN, GLOW,PLUG, START)
- One switch controls all light fixtures
- Digital hour meter
- Automatic shutdown for low oil pressure and high coolant temperature
- Wet-stacking mitigation
- Tier IV, CSA Approved
- 2 Year/2,000 Hour Limited Warranty
Specifications
- Liquid cooling system
- Full flow , spin on type oil filter, 1,000 hour service intervals
- 65 MPH Maximum wind speed
- Maximum Air Temperature: Lights 120°F, 100% Load 104°F
- Mitsubishi® L3E 3 Cylinder Diesel fueled Engine
- 1,800 RPM
- 0.95 L displacement
- Prime: 11.3 HP(8.4 kW), Standby: 12.2 HP (9.1 kW)
- Dry type cartridge air filter
- 39.9 Gallon polyethylene fuel tank
- 67 hour run time at 100% Load
- 0.59 GPH fuel consumption @ 100% load
- 3.5 in Port diameter
- 60 Hz Marathon Electric® brushless engine/generator
- Up to 6 kW output
- 120/240 V, 20/30 AMPs
- 6% capacitor voltage regulation
- (4) 296 Watt LED floodlight fixtures
- Aluminum & polymer housing
- 145 lpw
- 43,050 Lm/fixture
- Coverage: 19,526 Ft² @0.5 Ft-c
- 30 A start trip breaker
- Floodlight circuits w/sealed 10 A breakers
- 2 Outlets: (1) 120 VAC, 20 AMP, GFCI duplex, (1) 240 VAC, 30 AMP, twist-lock outlet
- 440 CCA wet cell battery
- Vertical operation and storage
- 5 tubular steel sections
- Winch: dual handle, electric
- 359° range of motion, adjustable from ground
- Self-retracting coiled mast cord
- Flip up design hood
- 63 dBA at 23 Ft @ prime power sound rating
- Lifting point & fork pockets
- Multi-lingual operating & safety decals
- Tubular steel frame
- 2"Ball hitch
- (3) 1,200 lb. leveling jacks, lockable into stowed positions
- Folding tongue
- Side outriggers
- 7,800 lb Safety chains w/spring loaded safety hooks
- Transport tie-downs
- DOT approved lights
- 2,200 lb leaf spring axle
Downloads
Product Manual (PDF Download)
