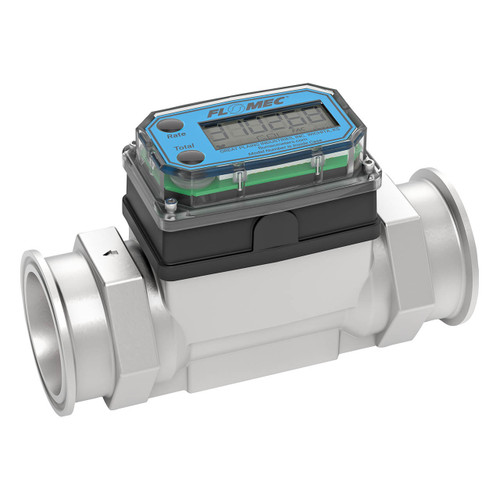

GPI G2S15TH9GMX 1 1/2 in. Industrial Stainless Steel Turbine Brew Meter w/ LCD Display and 2 in. Tri-Clamp Ends - Brewing Meter
GPI's G2 Stainless Steel Tri-Clamp Turbine Meter for the craft brewery industry features a local display designed to handle high-temperature applications up to 185°F (85°C). Commonly used in breweries to measure the volume of strike water added to the malted grains, an essential process in brewing high-quality beer. It’s highly dependable and affordable, making it a great choice for small-batch brewers.
Applications: Strike water, Hot water flow, Brewing liquids
Features
- Highly Visible Display: Features a Q9, battery-powered, LCD display with a 2-year battery life
- Modular Design: Allows for use with output modules, sensors, and remote display kits; plug and play
- Versatile Units: 11 pre-programmed engineering units plus 1 custom option for flexible measurement
- Sanitary Fittings: Tri-clamp, high temperature, sanitary fittings available in various sizes
- High Accuracy & Durability: Factory 5-point calibration and rugged, corrosion-resistant materials
- Easy Maintenance: Simple internal part replacement and non-volatile totals for continuous reliability
Specifications
- Pipe Size: 1 1/2 in. NPT (Female)
- Fitting Size: 2 in. Tri-Clamp
- Flow Range: 10 - 100 GPM (38-380 L/min)
- Accuracy: ±0.75%
- Technology: Turbine
- Pressure Rating (Limited by fitting, clamp size, & temperature): 1500 PSI (103 bar)
- Operating Temperature: 0° F to 185° F (-18° C to 85° C)
- Housing Material: Stainless Steel
- Wetted Materials: 316 Stainless Steel, Ceramic, PVDF, Tungsten Carbide
- Warranty: 2 Years
- Approvals: CE, NEMA 4, IP65
Downloads
Product Manual (Turbine Housing) (PDF Download)
Product Manual (Q9) (PDF Download)
Product Manual (4-20mA) (PDF Download)
Specifications Sheet (PDF Download)
