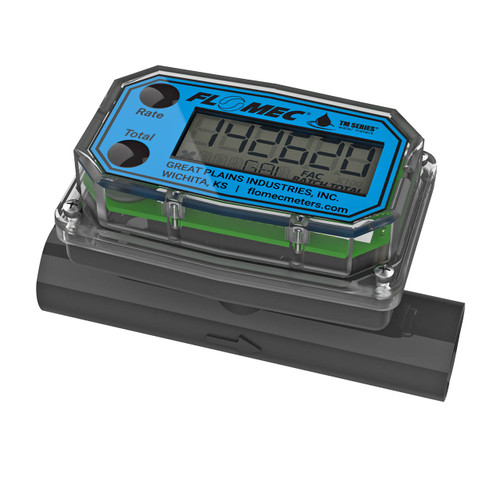

This economy water flow meter is an ideal alternative to traditional water meters. The TM Series water meters offer flow rate and flow total indication that help monitor water flow in waste water applications, water treatment, and sub-metering applications.
Features
- Easy to install
- Indicates Batch, Cumulative Totals and Rate of Flow
- Lithium battery life: 5 years
- Meets Schedule 80 PVC
- Non-volatile totals means amounts are retained when batteries are replaced or power is lost
Specifications
- Size: 3/4 in.
- Fitting: Spigot
- Flow Rate: 2 to 20 GPM
- K-Factor: 1,100 PPG (291 Pulses/L)
- Design Type: Turbine
- Accuracy: ±3.0 % of reading
- Operating Temperature: +32 to +140 ºF (0 to +60 ºC)
- Powered By: 5 Year Lithium battery
- Electronic Choice: Q9 Computer
- Pressure Rating: 225 PSIG (15.3 BAR) at 73º F / 23º C
- Pulse Output: Open Collector (NPN)
- Wetted Materials:
- PVC Housing
- Ceramic Bearings
- Tungsten Carbide Shaft
- PVDF Rotor
- 316 Stainless Steel Rings
Applications
- OEM Water Treatment Equipment / Skids
- Small Waste Water Treatment Equipment
- Sub-Metering of Facility Water Usage
- Water Based Cooling Systems
Downloads
TM Series Owner's Manual (PDF Download)
4-20mA Module Owner's Manual (PDF Download)
Pulse Access, External Power & Scaled Pulse Module Owner's Manual (PDF Download)
Q9 Computer Owner's Manual (PDF Download)
