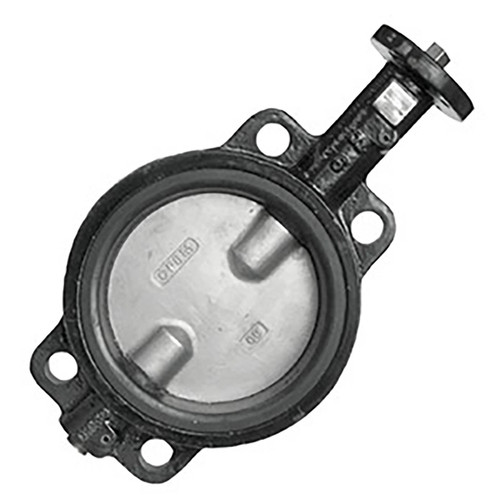

Wafer style butterfly valve designed for commercial and industrial applications up to 200 PSI. Seat to flange seal eliminates the need for flange gaskets. N 2-6 in. sizes come with L lever handle.
Features
- Easily accepts actuator with ISO 5211 mounting flange
- Ideal for mounting pneumatic/electrical actuators
- Square stem for direct mount
- Wetted surfaces contain less than .25% lead content
Specifications
- Nitrile Rubber Seal
- 10°F to 180°F Temperature range
- 2 in. to 12 in. sizes 200 PSI/ 14 in. to 24 in. 150 PSI inline service
- Epoxy-Coated Ductile Iron Body
- Nitrile Rubber seal
- 410 Stainless Steel lower and upper shaft
- CF8M Stainless steel disc
- PTFE bushing
- EPDM O-ring
- Meets API 609 & MSS SP-67
- NSF 61 / NSF 372 certified
Downloads
Product Manual (PDF Download)
