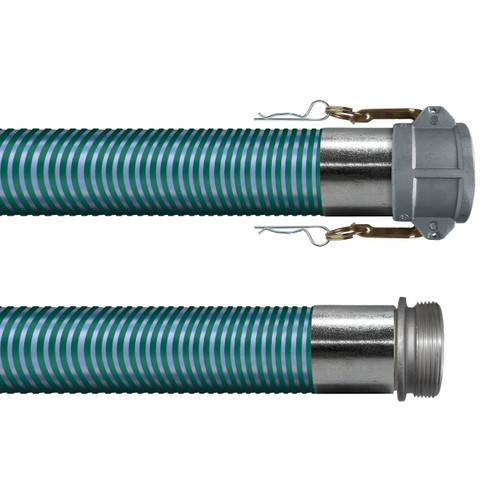

Kuriyama Tigerflex K Series PVC suction hose with it's see thru design allows for visual confirmation of material flow. The K Series with its PVC tube and PVC helix allows for a smooth outer cover that makes it easy to band and move. The hose is assembled with a female cam & groove coupling on one end and a male pin lug on the other end making it easy to attach a strainer.
Service Temperature: -4°F to 150°F
Applications
Specifications
| Hose ID (IN) | Hose OD (IN) | Maximum PSI at 68°F/104°F | Vacuum Rating at 68°F/104°F | Min Bend Radius (IN) |
| 1 1/2 | 1.83 | 70/50 | 28/24 | 5 |
| 2 | 2.32 | 65/45 | 28/24 | 7 |
| 3 | 3.43 | 60/40 | 28/22 | 10 |
| 4 | 4.50 | 50/35 | 28/22 | 15 |
| 6 | 6.75 | 40/25 | 28/20 | 30 |
