Kanaflex's ST 120 VP Vapor Hose is used for gasoline vapor recovery. Constructed from nitrile rubber, rigid PVC helix, smooth bore, corrugated O.D., and static grounding wire. Fully assembled with banding sleeves and quick couplings. We cut all our hose to length, attach the ends, and ground all of our hose assemblies. Please call for pricing on other vapor hose assemblies, due to the wide variations of hose length and fittings involved. We want to be sure you get the right vapor hose for your application. Other lengths and fittings available - please call 1-800-333-3331 for details!

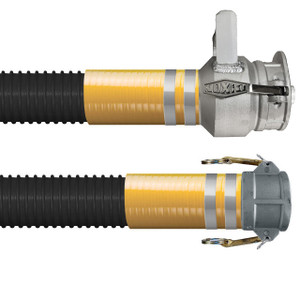

Hose Ends: Hose assemblies come with a standard 4 in. Part C female coupling on one end and a 4 in. female coupler with probe and check valve on 45° swivel hose shank on the other.
Part C = Female Coupler x Hose Shank
Part VR4040CS-ALS45 = Female Coupler With Probe and Check Valve x 45° Swivel Hose Shank
Features
- Lightweight
- Flexible in sub-zero temperatures
- Rigid PVC helix
- Static wire for protection against static discharge
- Made in the USA
Specifications
- Series: ST 120 VP
- Inside Diameter (I.D.): 4 in. (101.6 mm.)
- Outside Diameter (O.D.) 4.57 in. (116.1 mm.)
- Pitch: 0.65 in.
- Length: 10 - 30 ft. - Other Lengths Available - Please Call 1-800-333-3331 for More Information
- Hose Ends: 4 in. Female Coupler x 4 in. Female Coupler w/ Probe & Check Valve 45° Swivel Hose Shank
- Material: Nitrile Rubber, Rigid PVC Helix, Smooth Bore, Corrugated O.D., Static Grounding Wire
- Minimum Bend Radius: 5.0 in.
- Working Pressure: 10 PSI
- Vacuum Rating: 29.8 in. Hg
- Temperature Range: -40°F to 140°F (-40°C to +60°C)
- Fuel Compatibility: Gasoline Only
- Color: Black
- Weight: 1.70 lbs./ft.
