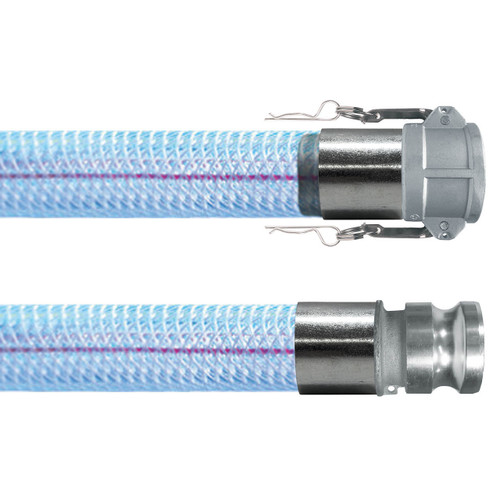

Crystal clear PVC compound, formulated with ingredients in compliance with applicable FDA1 requirements, meets USDA2, 3A3 and NSF4 criteria and California Proposition 65. Reinforced with spiraled polyester yarn and multiple longitudinal polyester yarn (including orange yarns for identification) to reduce elongation under pressure. Hoses are assembled with a Stainless Steel Female Coupling x Male Adapter.
Service Temperature Range: 25°F (-4°C) to 150°F (65°C)
Features
- Constructed with non-toxic compounds
- NSF-51 and NSF-61 certified material
- Crystal clear - allows visual confirmation of product flow
- Longitudinally-reinforced to reduce elongation under pressure
- Light weight
- Self-extinguishing
- Non-marking
- Silicone-free
- Non-conductive
- One-piece lengths
- Resistant to chemicals
- Phthalate free as of 4/1/15
- Compound hardness 73 ±3 Shore "A"
Specifications
<>Coil Length (FT)
| Hose ID(IN) | Hose OD (IN) | Max PSI @ 70°F | Max PSI @ 122°F |
|---|
| 3/16 |
.375 |
250 |
150 |
100 |
| 1/4 |
.438 |
250 |
150 |
100 |
| 5/16 |
.531 |
250 |
135 |
100 |
| 3/8 |
.594 |
225 |
125 |
100 |
| 1/2 |
.750 |
200 |
100 |
100 |
| 5/8 |
.891 |
200 |
100 |
100 |
| 3/4 |
1.03 |
150 |
85 |
100 |
| 1 |
1.30 |
125 |
75 |
100 |
| 1 1/4 |
1.62 |
100 |
55 |
50 |
| 1 1/2 |
1.94 |
100 |
50 |
50 |
| 2 |
2.49 |
75 |
35 |
50 |
Food Guide
| Apple (Sauce Or Juice) |
Flour |
Pineapple Juice |
| Barley |
Fruit Pulps |
Potatoes |
| Beer |
Fruit Juices |
Prune Juice |
| Beet-Sugar |
Honey |
Raisins |
| Brine |
Jelly |
Shortening |
| Brussel Sprouts |
Lard Oil |
Soft Drinks |
| Butter |
Lemon Juice |
Soybean Oil |
| Cane Sugar |
Mayonnaise |
Spinach |
| Castor Oil |
Milk |
Sugar |
| Catsup |
Molasses |
Tomato Juice |
| Cheese |
Oats |
Tomato Puree & Paste |
| Cherries |
Orange Juice |
Vegetable Oils |
| Corn Oil |
Peaches |
Vinegar |
| Eggs (Yolks Or Whites) |
Peanut Butter |
Wines |
| Fish Solubles |
Peas |
Yogurt |
Chemical Guide
| Acetic Acid 30% |
Ferric Nitrate |
Sodium Chloride |
| Alum |
Ferric Sulfate |
Sodium Cyanide |
| Aluminum Chloride |
Glycol |
Sodium Fluoride |
| Aluminun Hydroxide |
Hydrochloric Acid 48% |
Sodium Hydroxide 35% |
| Aluminum Nitrate |
Hydrogen Peroxide 50% |
Sodium Nitrate |
| Aluminum Sulfate |
Hydrogen Sulfide |
Sodium Sulfate |
| Ammonium Chloride |
Isopropylalcohol |
Sodium Sulfide |
| Ammonium Nitrate |
Magnesium Carbonate |
Sodium Sulfite |
| Ammonium Sulfate |
Magnesium Chloride |
Stannic Chloride |
| Ammonium Sulfide |
Magnesium Nitrate |
Sulfuric Acid 60% |
| Barium |
Magnesium Sulfate |
Tin Chloride |
| Borax |
Methyl Sulfate |
Trisodium Phosphate |
| Boric Acid |
Nickel Chloride |
Urea |
| Bromic Acid |
Nickel Nitrate |
Urine |
| Calcium Carbonate |
Nickel Sulphate |
White Gasoline |
| Calcium Chlorate |
Nitric Acid 10% |
Zinc Chloride |
| Calcium Chloride |
Nitrous Oxide |
Zinc Chromate |
| Calcium Hydroxide |
Oxygen |
Zinc Cyanide |
| Calcium Nitrate |
Phosphoric Acid 90% |
Zinc Nitrate |
| Calcium Sulfate |
Plating Solutions |
Zinc Sulfate |
| Chloral Hydrate |
Potassium Bicarbonate |
|
| Disodium Phosphate |
Potassium Bisulfite |
|
