Name: Novaflex 200 Softwall Water/Exhaust Hose
Brand: Novaflex
Availability: InStock

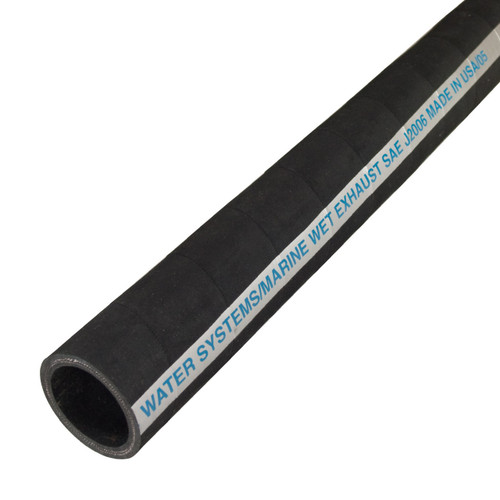

Novaflex 200 Softwall Water/Exhaust Hose

SKU:

Please choose an option below

Manufacturer:

Novaflex

Length:

50 ft.

Length:

25 ft.

Weight:

25.00 LBS

$409.27 - $1,277.31

Novaflex 200 Softwall Water/Exhaust Hose is designed for a wide range of water transfer and discharge applications as well as the tough demands of wet exhaust. The softwall (non-wire) construction is designed for straight routings. An excellent choice for bilge, toilet, scupper and water discharge applications that are straight. Meets SAE J2006R1 for marine exhaust hoses.

Hose Lengths:

1 1/2 - 4 in.: 50 ft.
4 1/8 - 8 in.: 25 ft.

Note: Not for steam service.

Features

Tube: Black EPDM
Reinforcement: Polyester fabric
Cover: Black EPDM
Hose Lengths:

1 1/2 - 4 in.: 50 ft.
4 1/8 - 8 in.: 25 ft.

Temperature Range: -40°F to +250°F - Not for Steam Service

Specifications

I.D.	O.D.	Length	Plies	Working Pressure	Weight
1 1/2 in.	1.94 in.	50 ft.	2	250 PSI	.5 lbs./ft.
1 3/4 in.	2.19 in.	50 ft.	2	250 PSI	.54 lbs./ft.
1 7/8 in.	2.31 in.	50 ft.	2	250 PSI	.58 lbs./ft.
2 in.	2.44 in.	50 ft.	2	200 PSI	.63 lbs./ft.
2 1/8 in.	2.69 in.	50 ft.	2	200 PSI	.67 lbs./ft.
2 1/4 in.	2.81 in.	50 ft.	2	200 PSI	.91 lbs./ft.
2 3/8 in.	2.94 in.	50 ft.	2	200 PSI	.97 lbs./ft.
2 1/2 in.	3.06 in.	50 ft.	2	150 PSI	1.02 lbs./ft.
2 5/8 in.	3.19 in.	50 ft.	2	150 PSI	1.07 lbs./ft.
2 7/8 in.	3.44 in.	50 ft.	2	150 PSI	1.13 lbs./ft.
3 in.	3.56 in.	50 ft.	2	125 PSI	1.29 lbs./ft.
3 1/8 in.	3.69 in.	50 ft.	2	125 PSI	1.34 lbs./ft.
3 1/2 in.	4.06 in.	50 ft.	2	125 PSI	1.5 lbs./ft.
4 in.	4.56 in.	50 ft.	2	100 PSI	1.72 lbs./ft.
4 1/8 in.	4.69 in.	25 ft.	2	100 PSI	1.77 lbs./ft.
4 1/2 in.	5.13 in.	25 ft.	2	100 PSI	2.15 lbs./ft.
5 in.	5.63 in.	25 ft.	2	100 PSI	2.38 lbs./ft.
5 1/2 in.	6.13 in.	25 ft.	2	100 PSI	2.62 lbs./ft.
6 in.	6.63 in.	25 ft.	2	85 PSI	2.86 lbs./ft.
6 5/8 in.	7.41 in.	25 ft.	2	75 PSI	3.95 lbs./ft.
8 in.	8.78 in.	25 ft.	2	75 PSI	4.76 lbs./ft.
