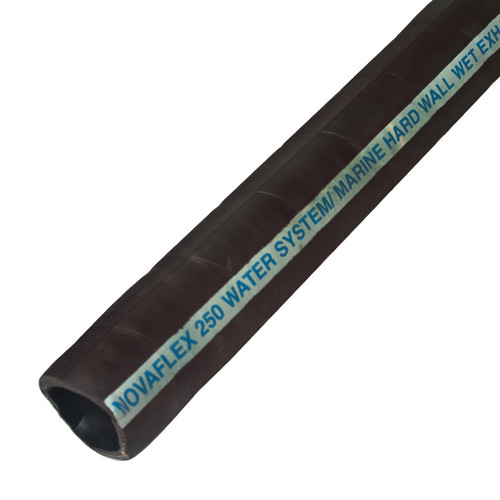

Novaflex 250 Smooth-Flex Marine Hardwall Water Exhaust Hose

Novaflex 250 Smooth-Flex Marine Hardwall Water Exhaust Hose

SKU:
Please choose an option below
Manufacturer:
Novaflex
Length:
50 ft.
Length:
25 ft.
Weight:
12.00 LBS
$328.07 - $1,056.52
Adding to cart… The item has been added

Novaflex 250 Rubber Smooth-Flex Marine Hardwall Water Exhaust Hose. Designed for a wide range of demanding engine applications from water intake and engine coolant to marine wet exhaust. Its wire helix construction provides excellent flexibility and bend radius. Also an excellent choice for bilge discharge, toilet and holding tank connections, water discharge and scupper lines. Meets SAE J2006R2 for marine exhaust hose.

Hose Lengths:
  • 1/2 - 4 in.: 50 ft.
  • 4 1/2 - 6 in.: 25 ft.

Note: Not for steam service.

Features

  • Tube: Black EPDM
  • Reinforcement: Polyester fabric with helix
  • Cover: Black EPDM
  • Hose Lengths:
    • 1/2 - 4 in.: 50 ft.
    • 4 1/2 - 6 in.: 25 ft.
  • Temperature Range: -40°F to +250°F - Not for Steam Service

Specifications

I.D.
O.D.
  Length
Working
  Pressure
Minimum
  Bend Radius
Weight
1/2 in.
.78 in.
50 ft.
300 PSI
2 1/2 in.
0.24 lbs./ft.
1 in.
1.28 in.
50 ft.
300 PSI
3 in.
0.37 lbs./ft.
1 1/8 in.
1.41 in.
50 ft.
300 PSI
3 in.
0.41 lbs./ft.
1 1/4 in.
1.53 in.
50 ft.
300 PSI
3 in.
0.48 lbs./ft.
  1 5/16 in.
1.63 in.
50 ft.
250 PSI
3 1/2 in.
0.52 lbs./ft.
1 3/8 in.
1.69 in.
50 ft.
250 PSI
4 in.
0.54 lbs./ft.
1 1/2 in.
1.81 in.
50 ft.
250 PSI
4 in.
0.59 lbs./ft.
1 5/8 in.
1.94 in.
50 ft.
200 PSI
5 in.
0.62 lbs./ft.
1 3/4 in.
2.06 in.
50 ft.
200 PSI
5 in.
0.67 lbs./ft.
1 7/8 in.
2.19 in.
50 ft.
200 PSI
5 in.
0.7 lbs./ft.
2 in.
2.31 in.
50 ft.
200 PSI
6 in.
0.8 lbs./ft.
2 1/8 in.
2.44 in.
50 ft.
200 PSI
6 in.
0.88 lbs./ft.
2 1/4 in.
2.56 in.
50 ft.
200 PSI
6 1/2 in.
0.9 lbs./ft.
2 3/8 in.
2.69 in.
50 ft.
200 PSI
7 in.
0.92 lbs./ft.
2 1/2 in.
2.81 in.
50 ft.
200 PSI
8 in.
1 lbs./ft.
2 5/8 in.
2.94 in.
50 ft.
150 PSI
9 in.
1.05 lbs./ft.
2 3/4 in.
3.06 in.
50 ft.
150 PSI
10 in.
1.1 lbs./ft.
2 7/8 in.
3.19 in.
50 ft.
150 PSI
11 in.
1.13 lbs./ft.
3 in.
3.31 in.
50 ft.
150 PSI
13 in.
1.18 lbs./ft.
3 1/8 in.
3.44 in.
50 ft.
150 PSI
15 in.
1.32 lbs./ft.
3 1/4 in.
3.63 in.
50 ft.
150 PSI
15 1/2 in.
1.36 lbs./ft.
3 1/2 in.
3.81 in.
50 ft.
125 PSI
16 in.
1.44 lbs./ft.
4 in.
4.31 in.
50 ft.
100 PSI
18 in.
1.59 lbs./ft.
4 1/2 in.
4.81 in.
25 ft.
100 PSI
24 in.
1.85 lbs./ft.
5 in.
5.31 in.
25 ft.
100 PSI
32 in.
2.04 lbs./ft.
6 in.
  6.31 in.
25 ft.
75 PSI
36 in.
  2.36 lbs./ft.
