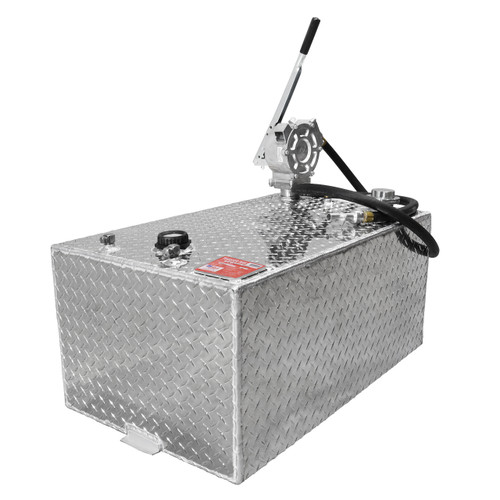

RDS Manufacturing 55 Gallon Aluminum Rectangular Transfer Fuel Tanks are made in the USA and are DOT approved for transferring diesel fuel and gasoline. These tanks have fully welded seams and are 100% pressure tested before leaving the manufacturer. Aluminum tanks do not rust, protecting fuel from contamination. The tank comes with a GPI HP-100 hand pump with 8 ft. of dispensing hose, a dispensing nozzle and a suction tube. The HP-100 dual-flo handle design provides high and low volume settings and is capable of pumping 50 gallons per 100 strokes.
Features
- 2 in. female pipe thread coupling for pump
- 0.125 in. heavy-duty aluminum construction - No rusting
- Fully welded seams
- 100% pressure tested
- Built-in baffles reduce sloshing
- Lockable gas cap
- Rollover safety valve (vent)
- Includes 3/8 in. FTP drain plug
- DOT approved tank can be used to transport diesel or gasoline
Specifications
- Material:
- Lightweight, die-cast aluminum housing.
- Stainless steel piston shaft and liner.
- Buna-N seals.
- Built-in air valve to prevent leakage at the nozzle.
- Non-UL Model:
- 3/4 in. x 8 ft. Buna-N hose.
- Thermoplastic unleaded nozzle.
- Built-in nozzle holder.
- UL Model:
- UL Model:3/4 in. x 8 ft. Electrically Conductive hose (UL Listed) with metal nozzle.
- Suction Pipe: Plastic, adjustable 22 to 40 in.
- Pumping Capacity: 1/2 gallon (1.9 litres) per stroke cycle.
- Inlet: 1 in. NPT
- Outlet: 3/4 in. NPT
- Shipping Weight: 14 lbs.
- Hose and Nozzle:
- Pumping Settings: 1/2 gallon setting for high volume, high resistance. 1/4 gallon setting for low volume, low resistance.
- Pumping Settings: 1/2 gallon setting for high volume, high resistance.
- 1/4 gallon setting for low volume, low resistance.
Important Notes:
- Mounting tabs extend out 1 in. - adds 2 in. to total length and 1 in. to total width
- Add 2 1/2 in. for fill cap height
- Always measure the truck's bed for clearance at corners, wheel wells, etc.
