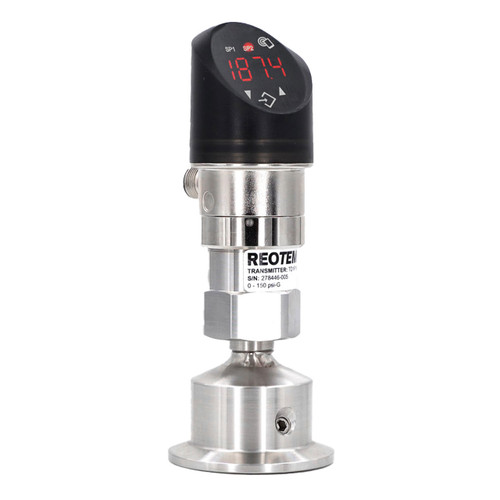

Reotemp TSTDS Industrial Sanitary Pressure Transmitters W/ Display & 2 In. Tri-Clamp, M12

Made in the USA
SKU:
Please choose an option below
Manufacturer:
Reotemp
Product Type:
M12 x 1 Connection
Material:
Stainless Steel
Size:
2 in. Tri-Clamp
Weight:
2.00 LBS
$920.15
Adding to cart… The item has been added

Description

Sanitary TSTDS Pressure Transmitters W/ Display &amp" Tri-Clamp, M12 x 1 (5-Pin). Designed for "Clean-in-place" and "Sterilize-in-place" 316 Stainless Wetted Parts. TSTDS sanitary pressure transmitters are available with multiple pressure options ranging from 0 PSI to 1000 PSI.

Features

  • 3-A" Tri-Clamp® Sanitary Connection
  • 0.5% Accuracy (3/4" Tri-Clamp® +/- 1.0%)
  • Display and Electrical Connection are Independently Rotatable 335 ° /343 °
  • Zero & Span Adjustment
  • Designed for "Clean-in-place" and "Sterilize-in-place" 316 Stainless Wetted Parts
  • Media Temperature Up to 750 ° F
  • Excellent Long-term Stability

Specifications

  • Brand: ReoTemp
  • Series: TSTDS
  • Output Signal: 4-20mA, 3-wire (standard), 0-5V, 0-10V, 1-6V (3-wire), Switchable from 4-20mA to 0-10 VDC
  • Measuring Principle: Thin-film-on-steel
  • Pressure Ranges: Vacuum, Compound, Pressure to 7,500psi
  • Accuracy NLH at 77 ° F (BSL): ±0.25% of span, ±1.0% of span with 3/4" Tri-Clamp Input: 15-30 Vdc (4-20mA), 15-30 Vdc (0-5V, 1-6V), 15-30 Vdc (0-10V)
  • Temperature: Temperature effect with 1.5" or 2" Tri-Clamp®: ±0.1% of span/10 ° F (for zero and span) or ±0.02 psi/10 ° F (greater of). Note: 3/4" Tri-Clamp® not recommended for temperature variations. Effect is less than or equal too ±0.9 psi/10 ° F, Media: -13 to 185 ° F, Ambient: -13 to 185 ° F
  • Weight: Approximately less than or equal too.7 oz
  • Environmental Rating: IP67
  • Switching Output: 2 Transistors PNP
  • Pressure Unit for Display: PSI, Bar, MPa, kPa, mWC, mmWC, %, User Scale

Downloads

Instructions (PDF Download)

Specifications Sheet (PDF Download)
