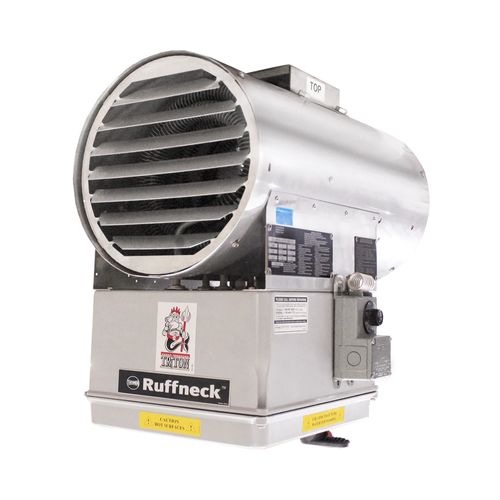

Ruffneck CR1 Triton CR1-600360-250-PD-01 Corrosion Resistant Washdown Heater

SKU:
PBCR1600360250PD01
Manufacturer:
Powerblanket
Product Type:
Corrosion Resistant
Capacity:
85,300 BTU
Fuel:
Electricity
Weight:
180.00 LBS
$6,900.20
Adding to cart… The item has been added

Ruffneck CR1 Triton CR1-600360-250-PD-01 Corrosion Resistant Washdown Heater.

The Ruffneck™ CR1 Triton™ Unit Heater is a corrosion-resistant washdown heater, designed for non-hazardous locations and applications using water pressure of less than 70 psi.

Features

  • Washdown Unit Heater c/w T'stat - 600V 3Ø 39kW
  • Ruffneck™ CR1 Triton™ Series is a new generation of NEMA 4X corrosion‑resistant washdown heaters. The first UL-listed Type 4X heater with models ranging from 3 kW to 39 kW
  • IMPORTANT: Ruffneck™ CR1 heaters are suitable for non‑hazardous locations only. For washdown applications use water pressure of less than 70 psi.
  • The entire heater is NEMA Type 4X
  • Epoxy-coated fan blade
  • 16‑gauge stainless‑steel cabinet
  • Custom-configured stainless‑steel elements
  • Optional built‑in accessories
  • Stainless‑steel wall/ceiling mounting kit
  • 120 V controls
  • Stainless‑steel temperature high‑limit
  • Increased safety and protection against water penetration
  • Added corrosion protection
  • Better resistance to corrosion for longer life
  • Improved heat distribution and corrosion protection
  • Flexibility and reduced field installation costs
  • Flexible options for mounting heater
  • Better contactor pull‑in reliability
  • Increased safety and reliability

Specifications

  • BTU/Hr: 85,300
  • Certifications: UL-CUL
  • Material: Stainless Steel
  • Color: Stainless Steel
  • Minimum Temperature: -4°F (-20°C) Ambient
  • Maximum Temperature: 104°F (40°C) Ambient
  • Voltage: 600-3Ø
  • Watts: 25,000
  • Amps: 31.4

Downloads

Owners Manual (PDF Download)

Specifications Sheet (PDF Download)
