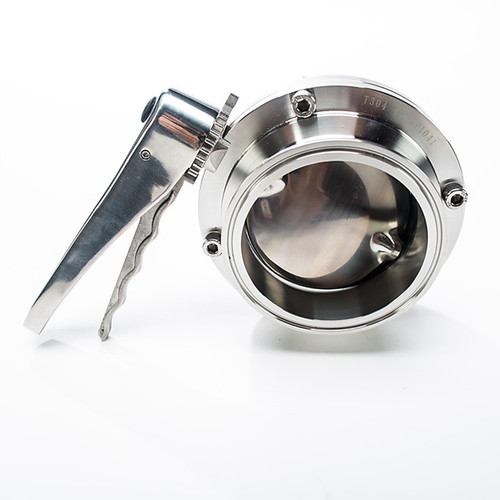

JME SSBFV Series 316 SS Multi-Position Butterfly Valve, w/EPDM Seals, SS Disc, Clamp Style

SKU:
Please choose an option below
Manufacturer:
JME Sanitary
Material:
316 Stainless Steel
Weight:
3.00 LBS
$109.84 - $258.15
Adding to cart… The item has been added

Our Multi-Position Handle Butterfly Valve has a lockable handles to prevent tampering, as standard. Standard clamp ends make for easy assembly and disassembly when cleaning or working in tight spaces. As for the wetted parts of the butterfly and valve are to a 20 Ra ID. Our Sanitary Multi-Position Two Way Handle Butterfly Valve comes standard with EPDM seats. Additionally, the valve requires no special tools allowing for easy maintenance and low installation costs. Each valve is capped and bagged as well as permanently etched with the Part number, size, alloy and heat number for full trace-ability.

Features

  • Lockable Handle
  • Passage Indication
  • No Special tools needed

Specifications

  • Alloy: T316L
  • Size: 1 in. TO 4 in.
  • Seats: EPDM (standard), Silicone, Viton®
  • Finish: Polish ID/OD
  • (4) Positions for Throttling the Valve
  • (ABS) Black Ball/ 100% Hydraulic Pressure Tested

Downloads

SPEC SHEET (PDF Download)

Torque Chart

Size InchesBreak Torque
1 in. 75
1-1/2 in. 130
2 in. 165
2-1/2 in. 210
3 in. 350
4 in. 540
