Description

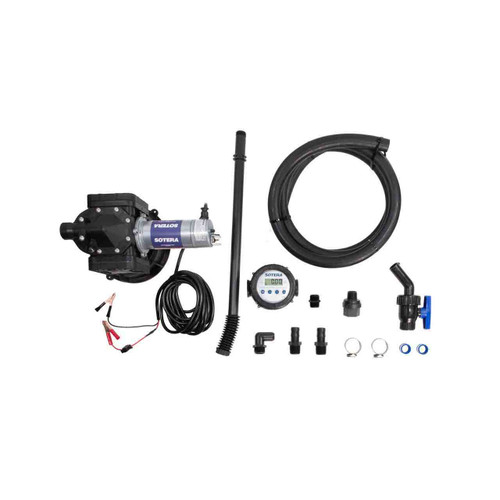

The Sotera SS457BMS4-PC1 model is a 12V DC transfer system designed for bulk transfer with a broad range of chemicals, including water-based acids and solvents. The SS457BMS4-PC1 is manufactured with a 9" recirculating cap, perfect for mixing and agitating fluids stored in totes. It comes complete with a suction pipe, Sotera 825 Digital Flow Meter, discharge hose, nozzle, and other fittings. The Sotera 400 Series is widely known for its versitility and dependability in a broad range of ag-chemical and industrial applications. These reliable pumps are built to last, with robust glass-filled polypropylene construction ? perfect for withstanding daily use and tough weather conditions. Utilizing electric double diaphragm technology, the 400 Series efficiently transfers fluids ranging from 0 to 3700 cP and can pass particle sizes up to 1/10"Features
- Consistent & Reliable Performance - engineered with double diaphragms, the Sotera 400 series delivers reliable performance by maintaining constant output pressure regardless of load Fluid Flexibility - santoprene diaphragms are compatible with a wide range of fluids including but not limited to agricultural pesticides, herbicides, fertilizers, mild acids, soaps, and water
- Durable Design - pump can run dry without causing any internal damage, giving you peace of mind with your investment
- Long Life thermally-protected motor prevents overheating, ensuring your pump withstands the test of time
- Convenient Configurations - conveniently available in six core configurations for your application including the portable Chemtraveller, recirculating Mix-N-Go, mobile Pump-N-Go, sturdy IBC tote bracket, steel drum mount, and plastic straight flange
- 5-Year Warranty - we stand behind our product with full 5-Year Warranty to protect your purchase and your business
Specifications
- Flow Rate @ 1.5 CP: 13 GPM / 49 LPM
- Flow Rate @ 350 CP: 12 GPM / 45 LPM
- Maximum Fluid Viscosity : Up to 3700 cP
- Maximum Particle Size : Up to 1/10" / 2.54 mm
- Minimum Suction Lift : 9 ft / 2.7 m (Water)
- Maximum Discharge Head : 34 ft / 10.4 m
- Maximum Discharge Pressure : 15 PSI / 1.03 BAR
- Duty Cycle : 30 minutes on / 30 minutes off
- Thermally Protected Motor : Yes
- Motor Horsepower : 1/4 HP
- Maximum Sound Level : 76.6 dB
- Inlet Size & Thread : 1" NPT
- Outlet Size & Thread : 1" NPT
- Min / Max Operating Temperature : -10°F (-23°C) / 130°F (54°C)
Includes
- 825 Digital Meter
- 1" x 12' EPDM Hose
- 28" 46" Polypropylene Telescoping Suction Pipe with Bellows
- 1" Polypropylene Shutoff Ball Valve with Tip
- (2) 1" Hose Barbs
- 1" 90° Barbed Elbow
- 1" x 2" Poly Pipe Nipple
- 1" NPT Check Valve
- (2) 1" Hose Clamps
- (2) PTFE Tape Rolls
Chemical Compatibility
- 2,4-D Ester
- Atrazine®
- Crop Oils
- Fertilizers
- Fungicides
- Gramoxon Extra®
- Gramoxone
- Metribuzin
- Nitrogen Based
- N-Serve 24
- Phosphoric Acid
- Roundup®
- S-Metolachlor
Chemical Compatibility should be considered as a guide only due to the many variables which may affect the compatibility of materials.
